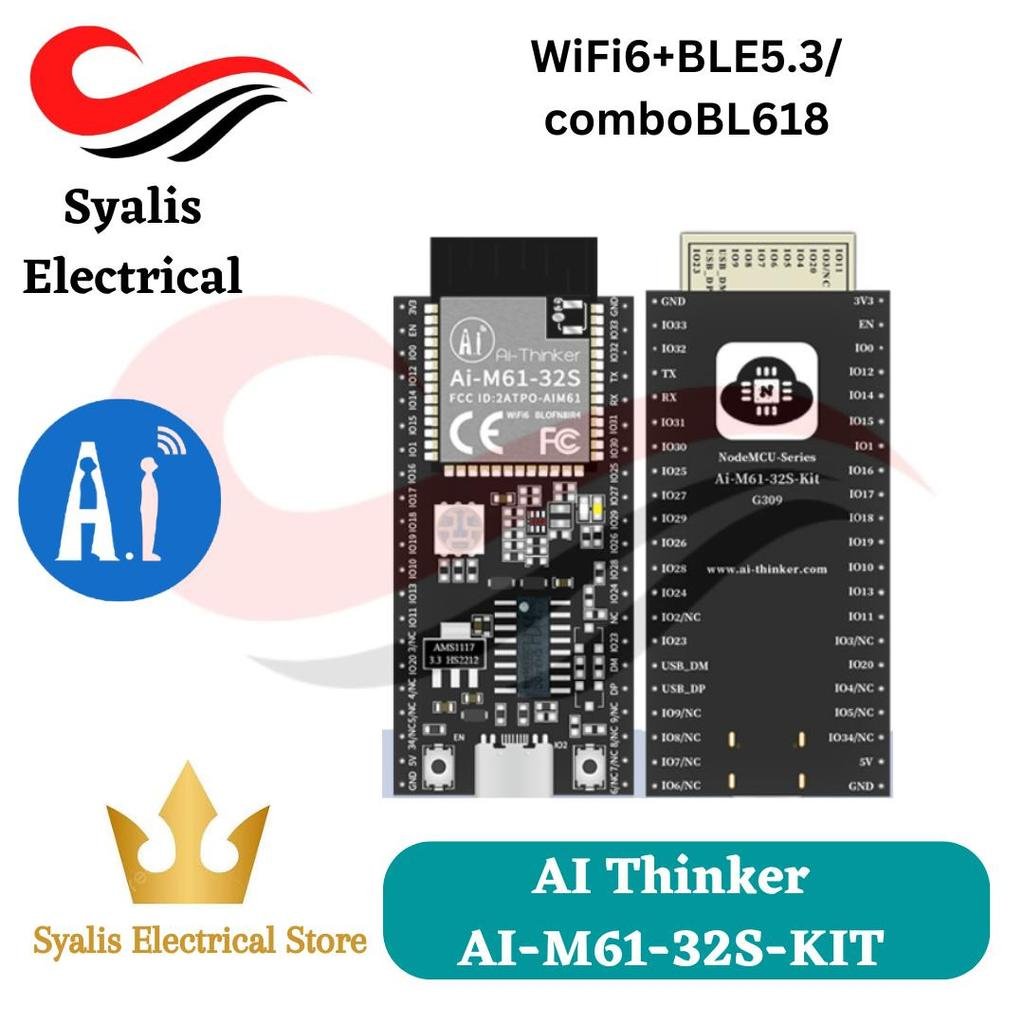

Ai-M61-32S-Kit is a development board designed for Ai-M61-32S modules. Ai-M61-32S is a Wi-Fi 6 + BLE5.3 module developed by Shenzhen Ai-Thinker Technology Co., Ltd. The module is equipped with BL618 chip as the core processor, supports Wi-Fi 802.11b/g/n/ax protocol and BLE protocol, and supports Thread protocol. The BL618 system includes a low-power 32-bit RISC-V CPU with floating-point unit, DSP unit, cache and memory, with a maximum dominant frequency of 320M. The Ai-M61-32S module has rich peripheral interfaces, including DVP, MJPEG, Dispaly, Audio Codec, USB2.0, SDU, Ethernet (EMAC), SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc. It can be widely used in audio and video multimedia, Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes and other fields. The Ai-M61-32S module Sec Eng module supports AES/SHA/PKA/TRNG and other functions, supports image encryption and signature startup, and meets various security application requirements in the Internet of Things field.

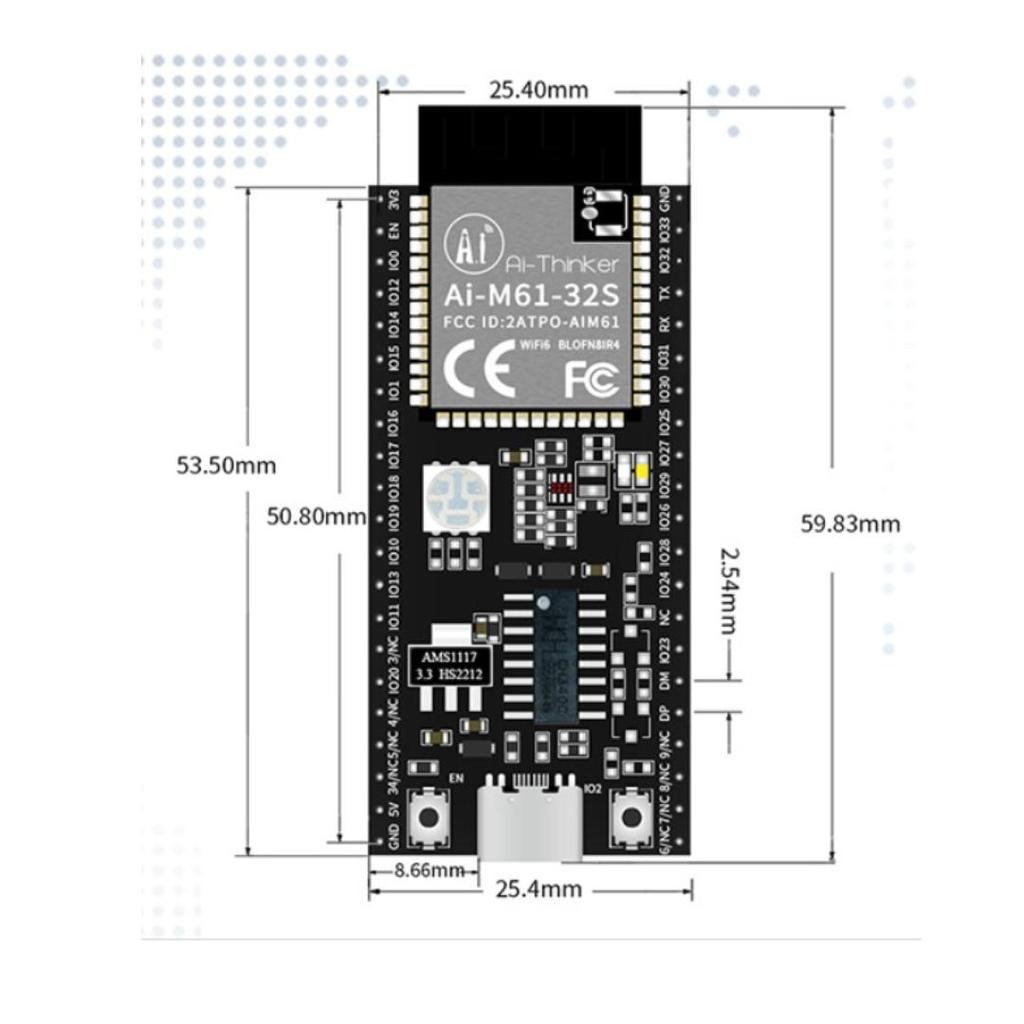

DIP-42 package

Supports 2.4GHz operating frequency band

Support IEEE 802.11 B/g/n/ax n Support BLE5.3

Support Thread n Support Wi-Fi/BLE/Thread coexistence

Wi-Fi security support WPS/WEP/WPA/WPA2/WPA3

Supports 20/40MHz bandwidth, 1T1R, maximum rate 229.4 Mbps

Support STA, SoftAP, STA + SoftAP and sniffer modes

32-bit RISC-V CPU with FPU and DSP, with a maximum dominant frequency of 320M

4MB pSRAM,532KB SRAM,128KB ROM,4Kb eFuse

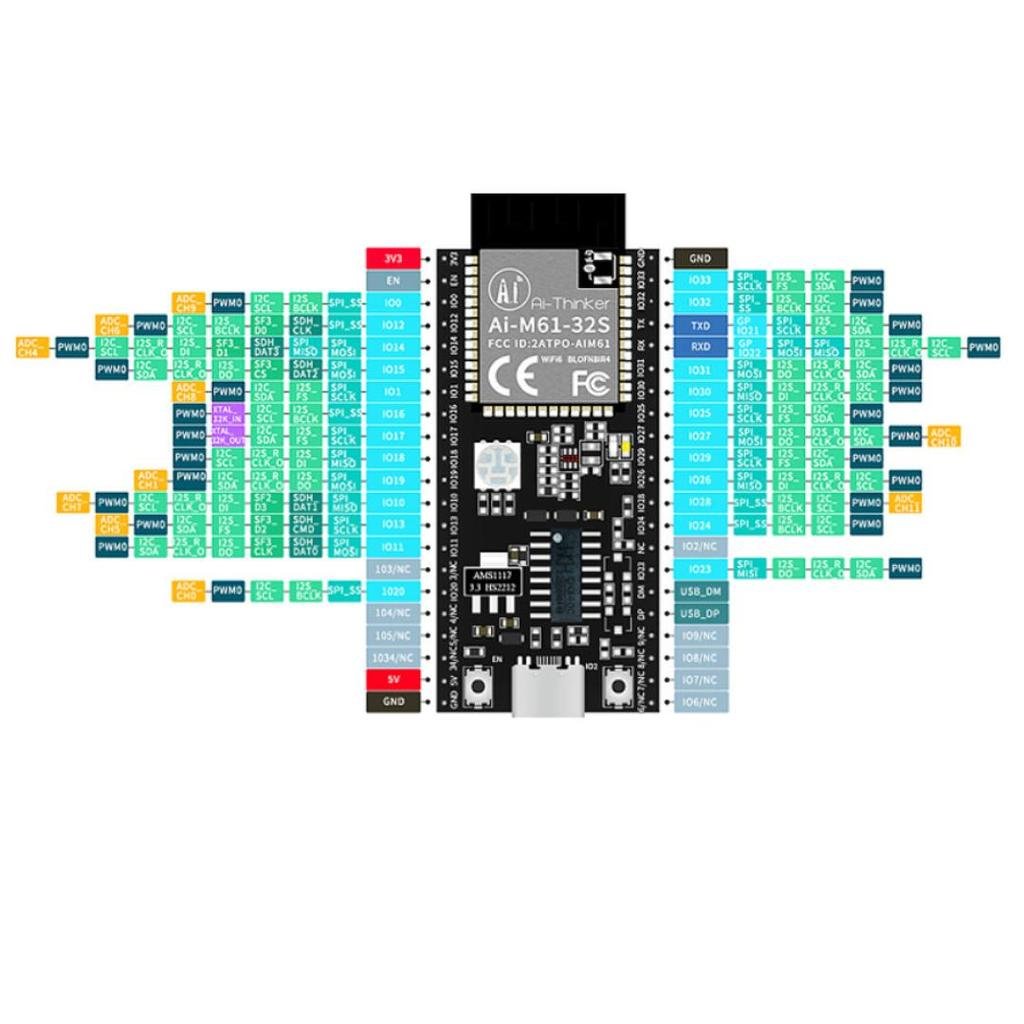

Supports DVP, MJPEG, Dispaly, Audio Codec, USB2.0, SDU, Ethernet (EMAC), SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc.

Support Camera Sensor DVP interface

Support Video Codec MJPEG encoding

Support LCD display (QSPI,DBI and RGB)

Integrated RF Balun, PA/LNA

Support for safe startup and safe debugging

Support XIP QSPI On-The-Fly AES decryption (OTFAD)

Support TrustZone n Support AES-CBC/CCM/GCM/XTS mode

Support MD5, SHA-1/224/256/384/512

TRNG (True Random Number Generator) is supported

Support PKA (Public Key Accelerator) for RSA/ECC

BLE-enabled Wi-Fi fast connection

Universal AT command can be used quickly.

Supports secondary development and integrates Windows and Linux development environments
