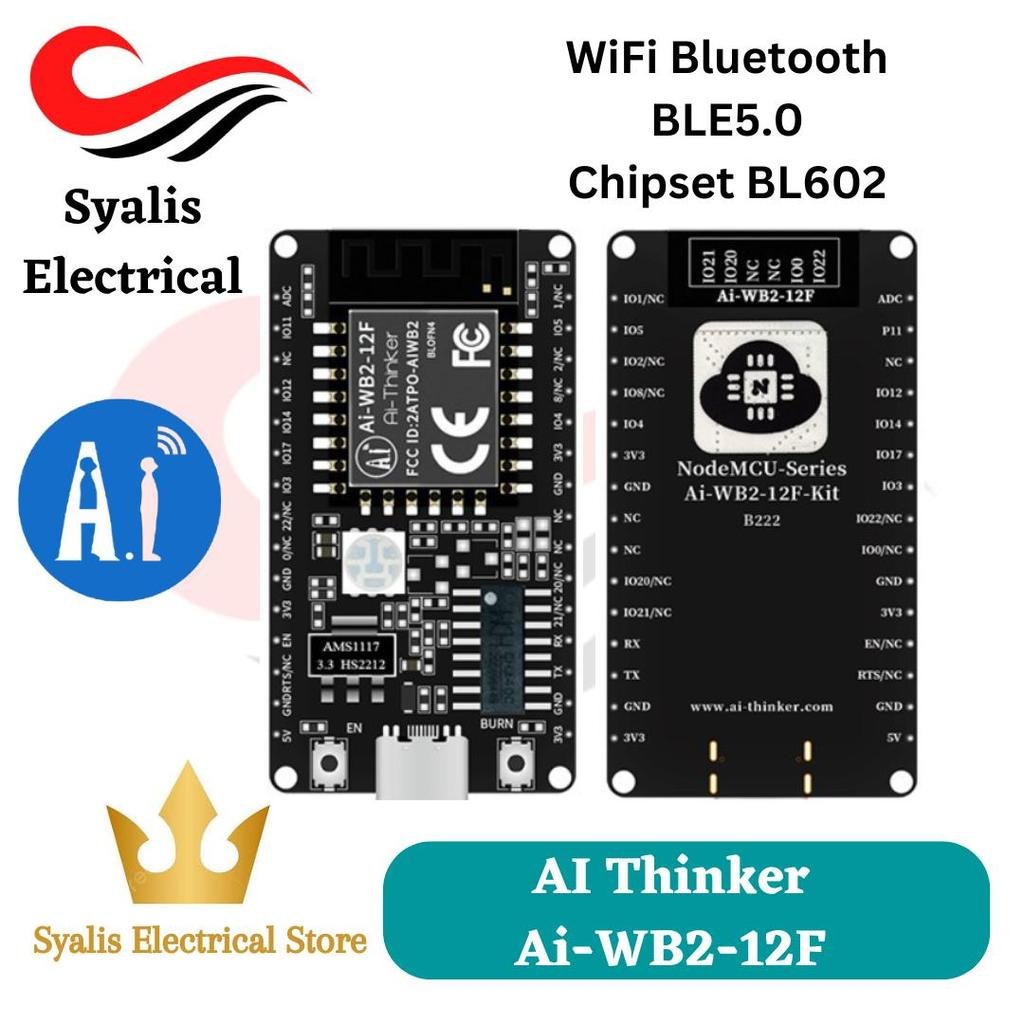

Ai thinker WB2 12F Ai-WB2-12F BLIFN4 Modul WiFi Bluetooth Base On Chipset BL602 WIFI+BLE5 [Syalis]

SYALIS ELECTRICAL STORE

The module is equipped with BL602 chip as the core processor and supports Wi-Fi 802.11b/ g/n protocol and BLE 5.0 protocol. The BL602 chip has a low-power 32-bit RISC CPU, 276KB RAM, and a wealth of peripheral interfaces, including SDIO, SPI, UART, I2C, IR Remote, PWM, ADC, DAC, PIR and GPIO etc. It can be widely used in Internet of Things (IoT), mobile devices, wearable electronic devices, smart home and other fields.

Characteristic:

Support IEEE 802.11 b/g/n protocol

Wi-Fi Security Support WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3

Support 20MHz bandwidth and Max rate is 72.2 Mbps

BLE 5.0 Mesh

Support Station + BLE mode/Station + SoftAP + BLE mode

Support 32-bit RISC CPU,276KB RAM

Secure start-up, supports mirroring with ECC-256 signature

Support QSPI/SPI Flash On-The-Fly AES Decryption, support AES 128 CTR mode

Support AES 128/192/256-bit encryption engine

Support SHA-1/224/256

Support True Random Number Generator (TRNG)

Public Key Accelerator (PKA), support large number basic operations, software provides signature, verification and other application program interface

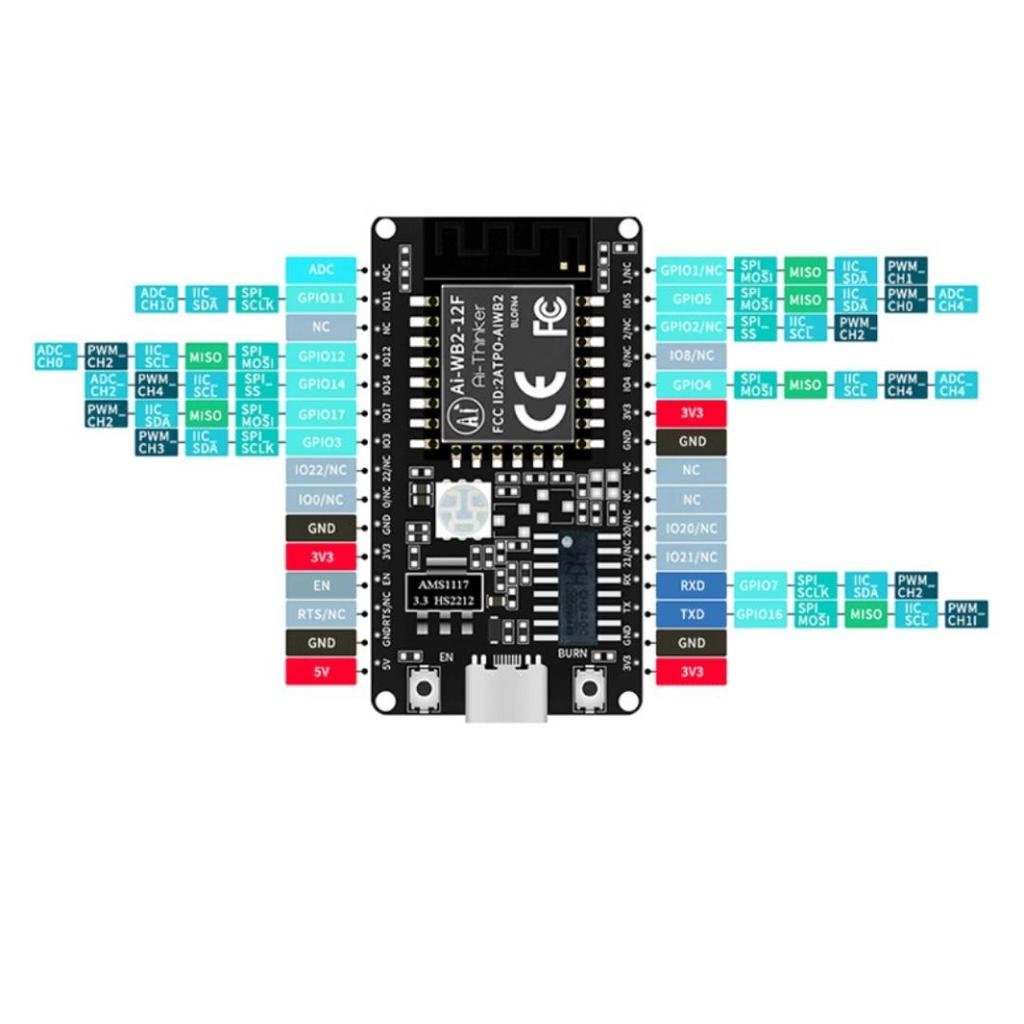

Support SDIO,SPI,UART,I2C,IR remote,PWM,ADC,DAC,PIR,GPIO etc

Integrated Wi-Fi MAC/BB/RF/PA/LNA/BT

Support a variety of sleep modes, deep sleep current 12uA

Universal AT instruction for quick start

Support secondary development, integrated Windows, Linux development environment
