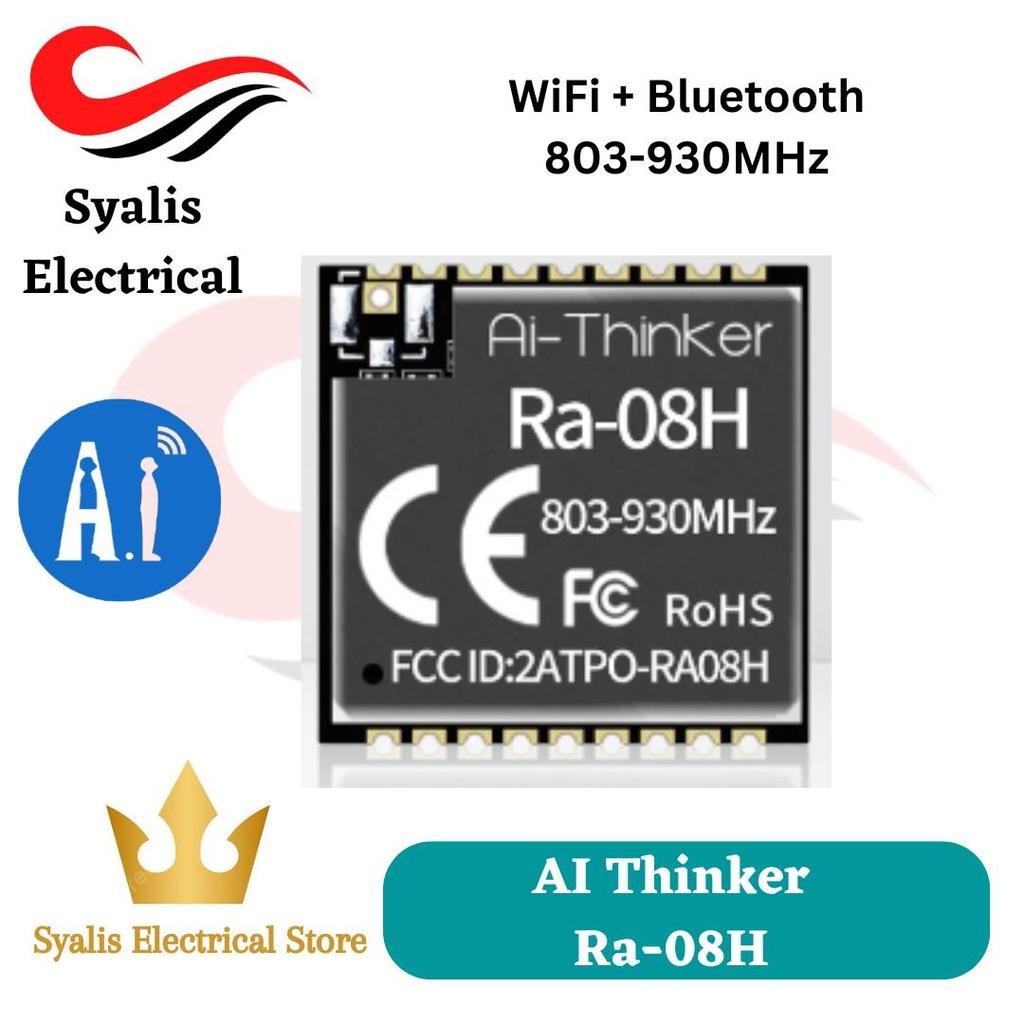

Ai Thinker Ra-08h LoRa module Lorawan Chip RA-08H RA-08 ASR6601 803-930MHz SX1262 – RA-08H [Syalis]

SYALIS ELECTRICAL STORE

Ai-Thinker Ra-08/08H adalah CHip LoRaWAN baru berdasarkan modul ASR Microelectronics ASR6601 yang menampilkan mikrokontroler ARM Cortex M4 48MHz dan transceiver Semtech SX1262 yang memungkinkan komunikasi jarak jauh dan berdaya rendah untuk Internet of Things.

Spek:
– Programmable embedded Arm Cortex-M4 MCU with 128 KB of Flash and 16 KB of SRAM
– LoRa radio
– Sensitivity – -138 dBm @ SF12/125KHz
– Tx power – Up to +22dBm
– Spread spectrum factors – SF5, SF6, SF7, SF8, SF9, SF10, SF11, SF12
– LoRa, (G)FSK, BPSK, and (G)MSK modulation
– Bit rate up to 62.5 Kbps in LoRa modulation mode, up to 300 Kbps in (G)FSK modulation mode
– Antenna options – IPEX connector, or solder via castellated hole or through-hole

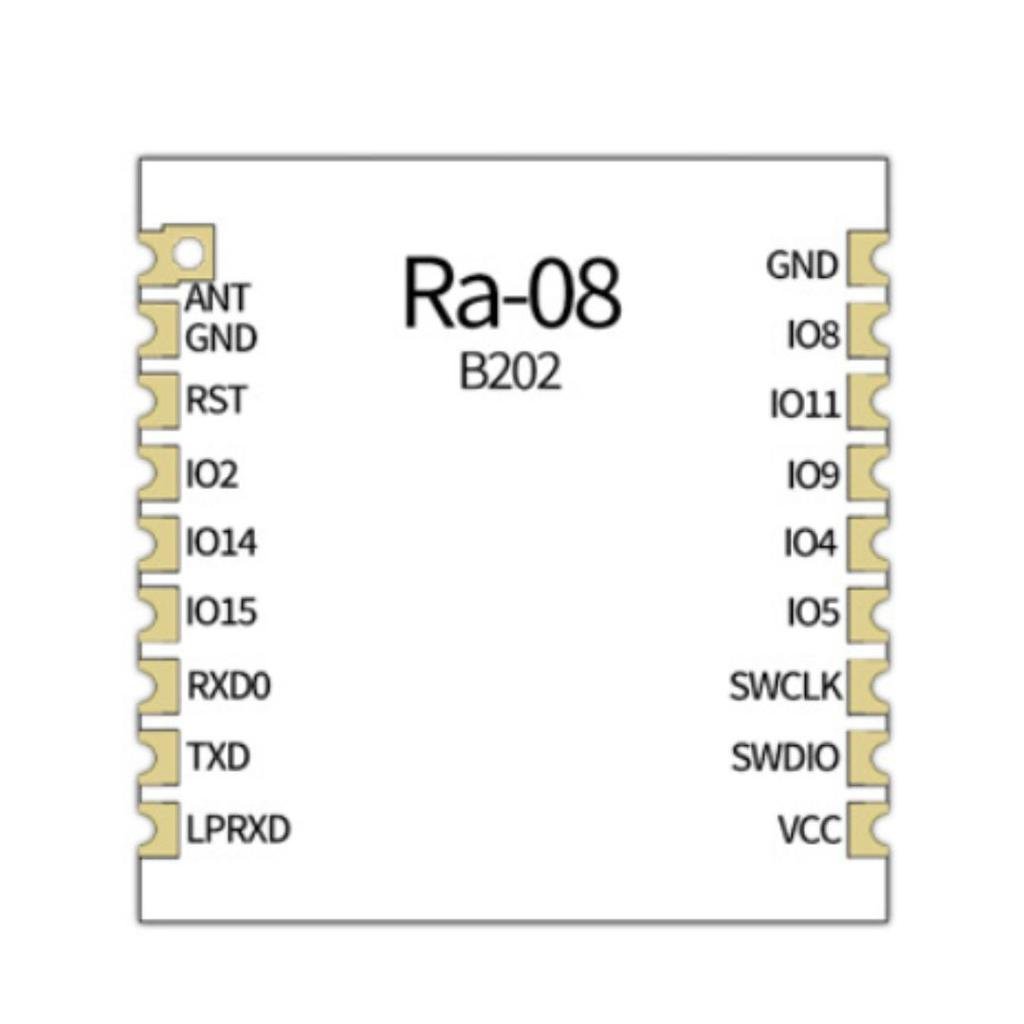

– Peripherals – GPIOs, I2C, I2S, UART, LPUART, SWD, SPI, QSPI and WDG
– Security – AES, DES, RSA, ECC, SHA and SM2/3/4
– Supply Voltage – 3.3V (2.7V to 3.6V)
– Power Consumption – Down to 0.9uA in deep sleep mode
-Dimensions – 16 x 16 x 3.2m (SMD-18 package)

RA-08H Frekuensi 803 MHz – 930 MHz

Datasheet Ai-Thinker:
https://drive.google.com/drive/folders/1TeFu02b9EZpESxnhLrE_o-G0U0cJ4ivc
