Serial Chip

Datasheet :
https://docs.ai-thinker.com/_media/bw16-kit_specification-v1.2.2-en.pdf

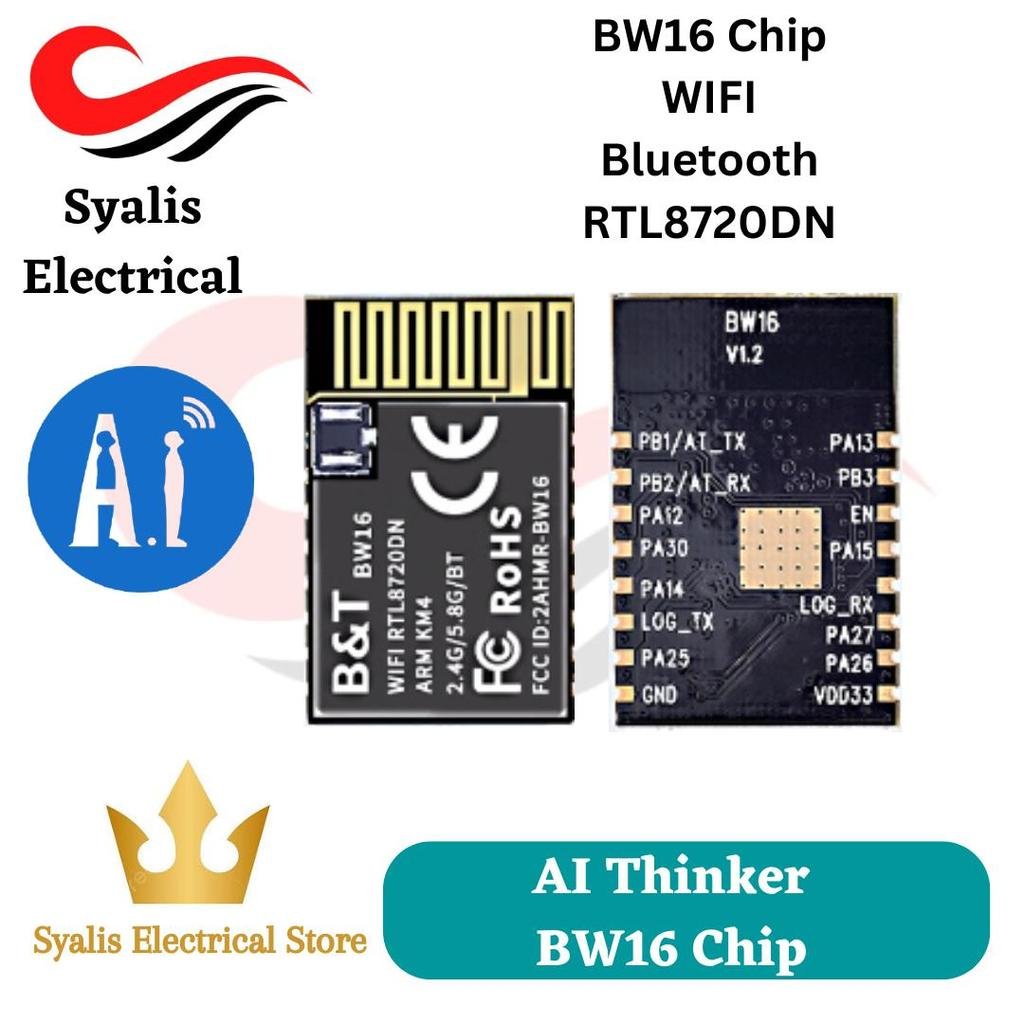

BW16 is a dual-band Wi-Fi+ Bluetooth SoC module
developed based on RTL8720DN.BW16 supports
dual-band (2.4GHz or 5GHz) WLAN and low-power
Bluetooth 5.0;It integrates ARM V8 (Cortex-M4F
compatible) high-performance MCU, ARM V8M
(Cortex-MO compatible) low-power MCU, WLAN
(802.11a/b/g/n), MAC, Bluetooth baseband and RF
baseband, and provides a set of configurable GPIO
ports for control of different peripheral devices.BW16
also integrates internal storage, supports simple
application development, and can realize full Wi-Fi and
BT 5.0 protocol functions.

Mendukung 802.11a/b/g/n 1×1, 2.4GHz atau 5GHz
Mendukung mode HT20/HT40
Mendukung mode pemantauan beacon berdaya rendah
Mode penerimaan berdaya rendah
Mode suspend berdaya rendah
Mesin perangkat keras AES / DES / SHA bawaan
Mendukung TrustZone-M, mendukung boot aman
Perlindungan akses port debug SWD dan mode larangan
Mendukung BLE dan BT5.0
BT mode daya tinggi (7dBm, berbagi PA yang sama dengan Wi-Fi)
Wi-Fi dan BT berbagi antena yang sama
Mendukung mode kerja STA/AP/STA+AP
Mendukung pemutakhiran lokal port serial
Pemutakhiran firmware jarak jauh (FOTA)
Chipset RTL8720DN
Package SMD-16
