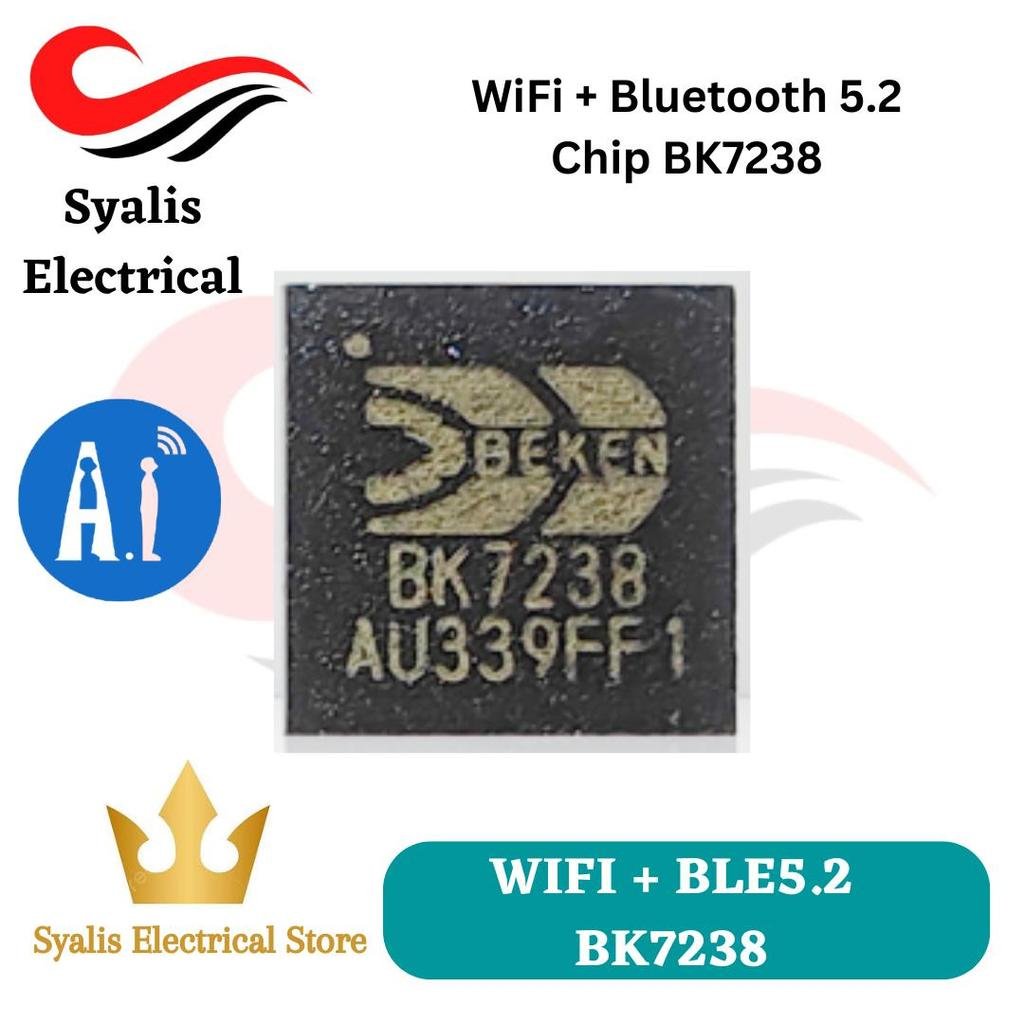

BK7238

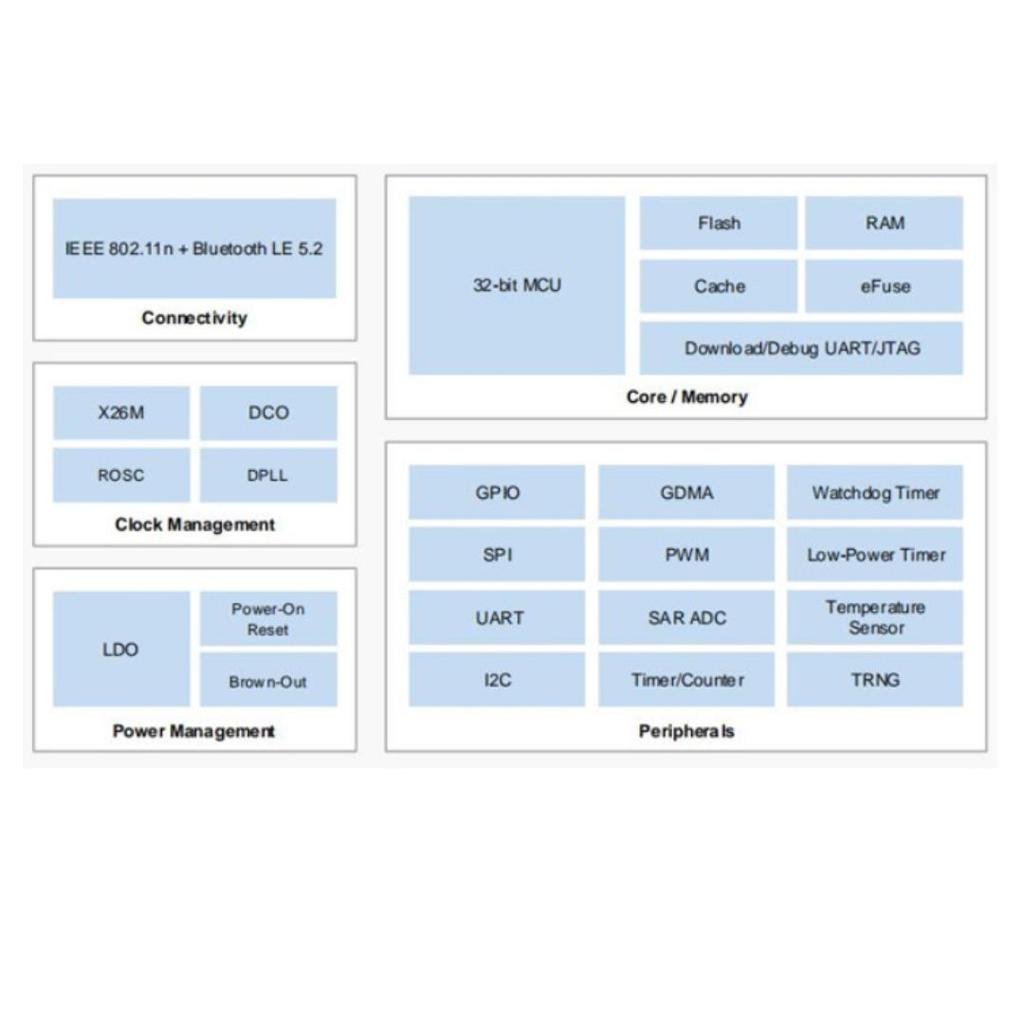

Core: ARM Cortex-M33.
Clock Speed: Up to 120 MHz.
Wireless Connectivity: Wi-Fi (802.11 b/g/n), Bluetooth Low Energy (BLE) 5.0.
Memory:
SRAM: Typically 352 KB (varies with specific models)
Flash: Integrated, typically up to 4 MB.
GPIOs: Varies by model (typically fewer than ESP8685).
Peripherals: SPI, I2C, UART, ADC, PWM, etc.
Power Consumption: Various low-power modes.
Security: Basic security features (some models may have advanced features).

Description

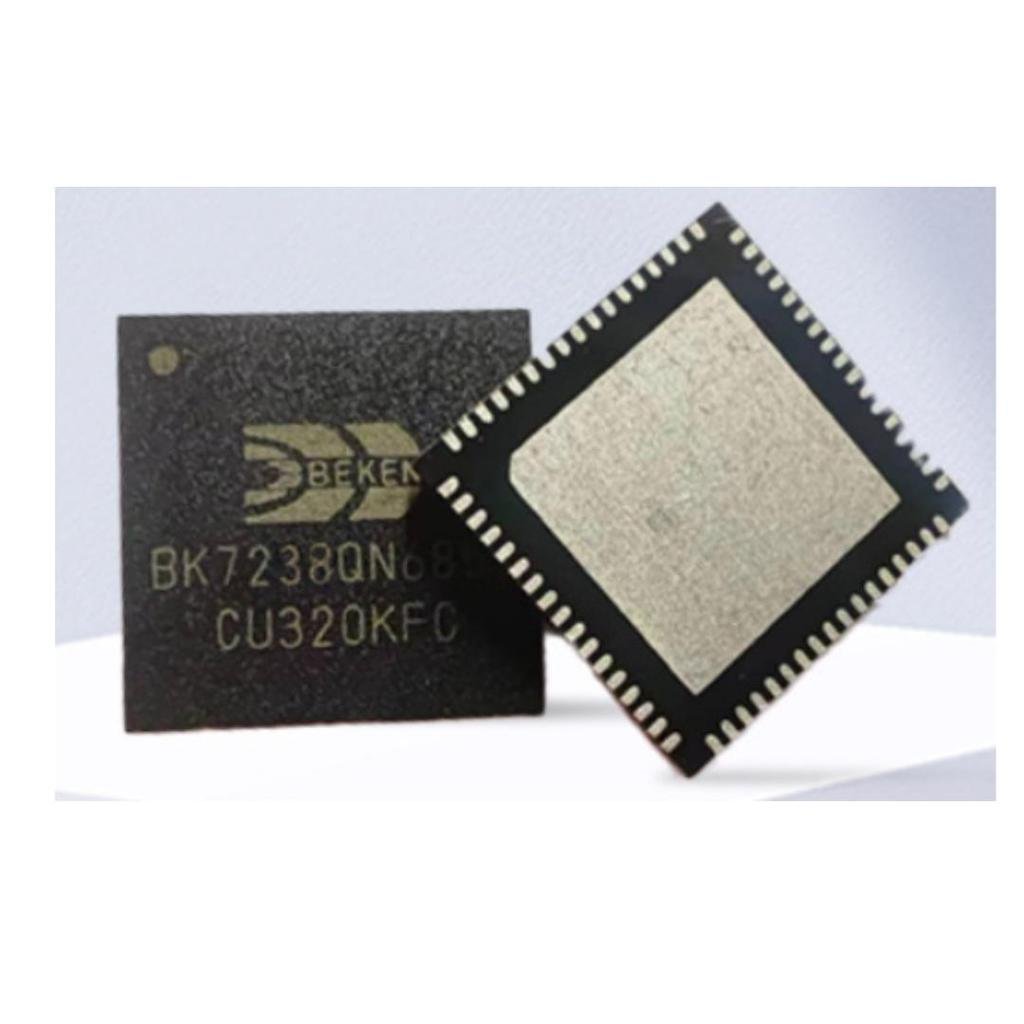

BK7238 Development board is based on the Beken 7238 chip having WiFi + Bluetooth + BLE. The module has a 32 32-bit single Core MCU, ultra-low power microcontroller that supports 802.11 b/g/n along with Bluetooth v4.2 BR/EDR and BLE specification. It has integrated 2 MB Flash, and up to 288 KB RAM. It can operate at up to 160 Mhz Frequency.

The BK7238 Development board is 24 24-pin board, with all of the interfaces accessible. It sports a micro USB Connector, and USB to UART Bridge, a reset button, and an LDO regulator. Most of the important GPIOs are accessible on the board.

This board is useful for adding high-capacity WiFi, Bluetooth, or BLE in any existing projects very rapidly, making it easier to develop for the developers.

802.11 b/g/n
WiFI + Bluetooth v4.2 BR/EDR And BLE 5.2
Based on BK7238, 32Bit single core MCU
Up to 288 KB RAM
Operating Voltage: 3.3 V
Supported Modes: AP, Station, AP+Station
Small Size, can be easily embedded into other projects
Further details of BK7238 can be found here
