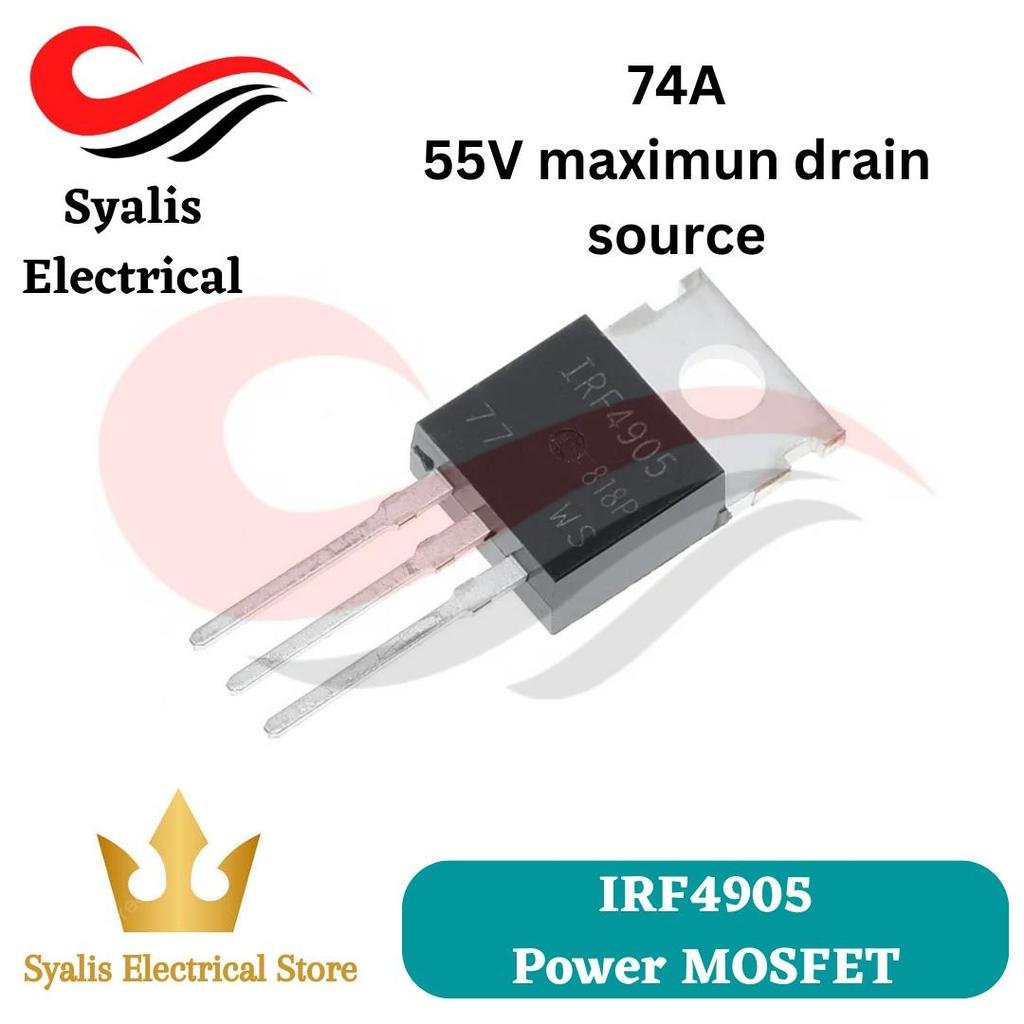

IRF4905 Power Mosfet transistor TO220 74A 55V [Syalis]

Name: IRF4905 Power Mosfet transistor TO220 74A 55V [Syalis]
SKU: EM-IRF4905
Price: 7200 IDR
Availability: InStock

Rp 7.200~~Rp 8.000~~ (-10%)

Status:Stok 22

SKU: EM-IRF4905 Category: EM - Supplier

SYALIS ELECTRICAL STORE

IRF4905 P-channel MOSFET Transistor 74A 55V 3-Pin TO-220AB BE58

Feature:
Channel Type:P
Maximum Continuous Drain Current:74 A
Maximum Drain Source Voltage:55 V
Maximum Drain Source Resistance:20 m
Maximum Gate Source Voltage:20 V
Package Type:TO-220AB
Mounting Type:Through Hole
Pin Count:3
Channel Mode:Enhancement
Category:Power MOSFET
Maximum Power Dissipation:200 W
Number of Elements per Chip:1
Typical Turn-On Delay Time:18 ns
Minimum Operating Temperature:-55 C
Typical Gate Charge @ Vgs:180 nC @ 10 V
Typical Input Capacitance @ Vds:3400 pF @ 25 V
Typical Turn-Off Delay Time:61 ns
