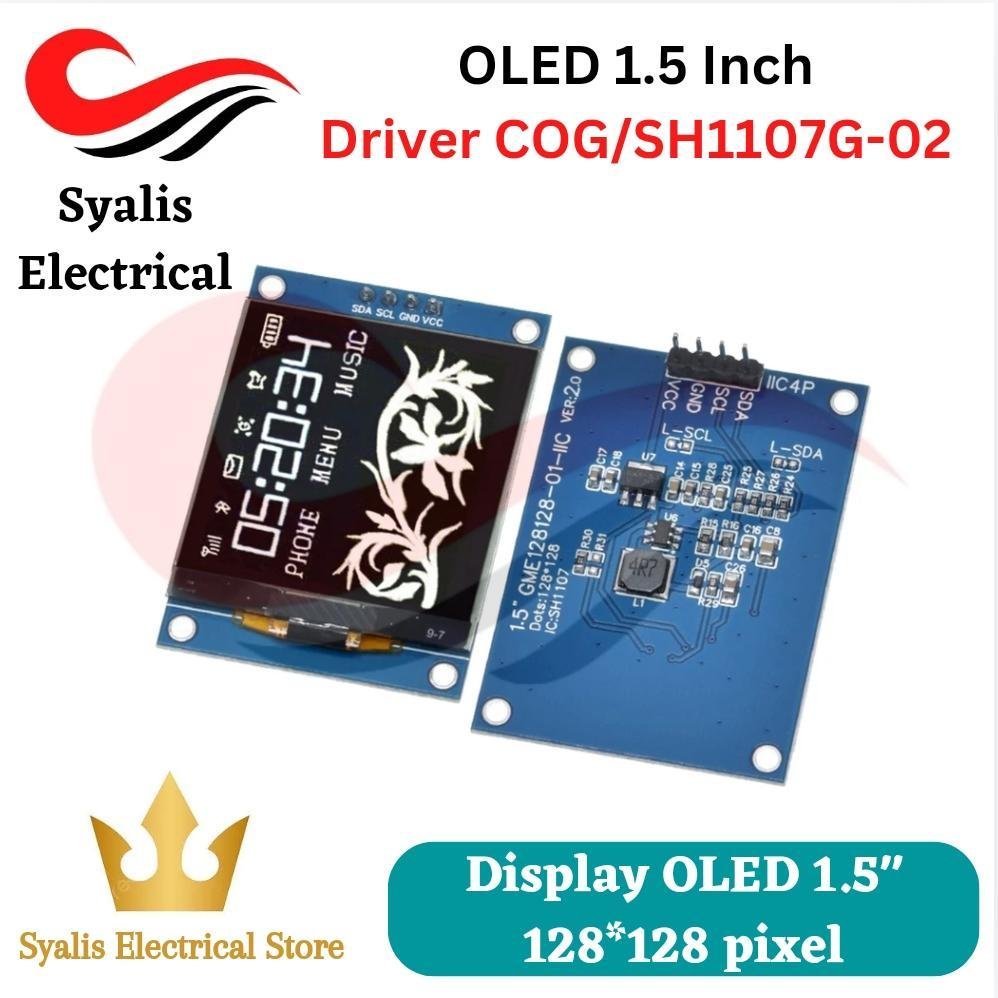

OLED 1.5 inch WHITE 128×128 I2C SPI LCD modul [Syalis]

Name: OLED 1.5 inch WHITE 128x128 I2C SPI LCD modul [Syalis]
SKU: EM-DOLED150
Availability: InStock

Rentang harga: Rp 101.700 hingga Rp 106.200 (-10%)

SKU: EM-DOLED150 Category: EM - Supplier

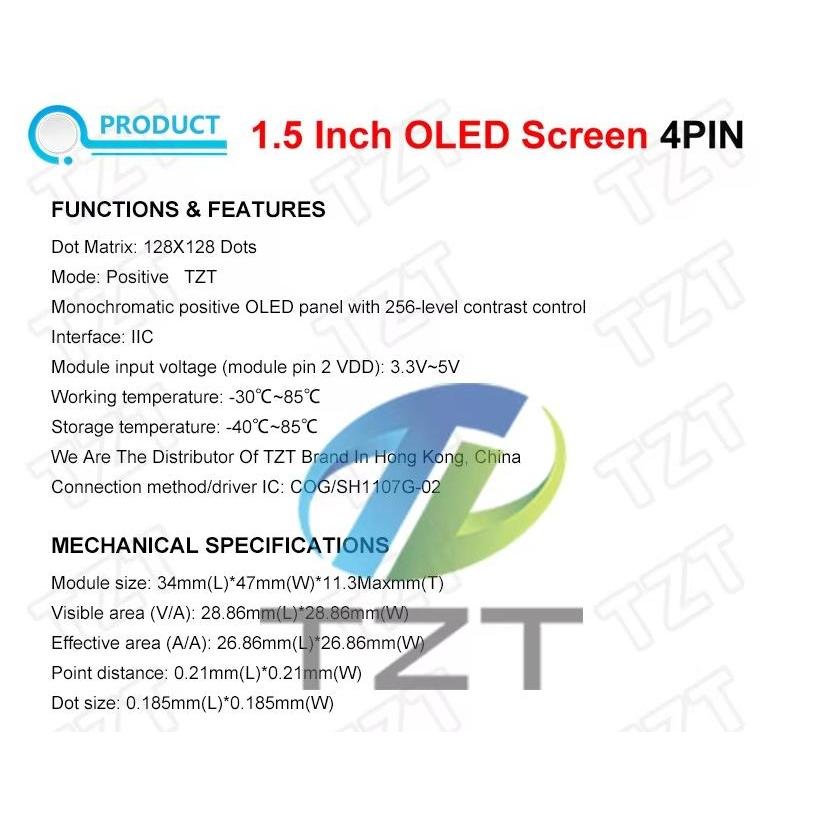

Spesifikasi

SYALIS ELECTRICAL STORE

1) Dot matrix, 128 X 128 dots
2) Mode, positive TZT
3) Monochromatic positive OLED panel with 256 level contrast control
4) Interface, IIC
5) Module input voltage (module pin 2 VDD), 3.3V~5V
6) Working temperature, -30°~85°C
7) Storage temperature, -40°~85°C
8) Connection method/driver IC, COG/SH1107G-02

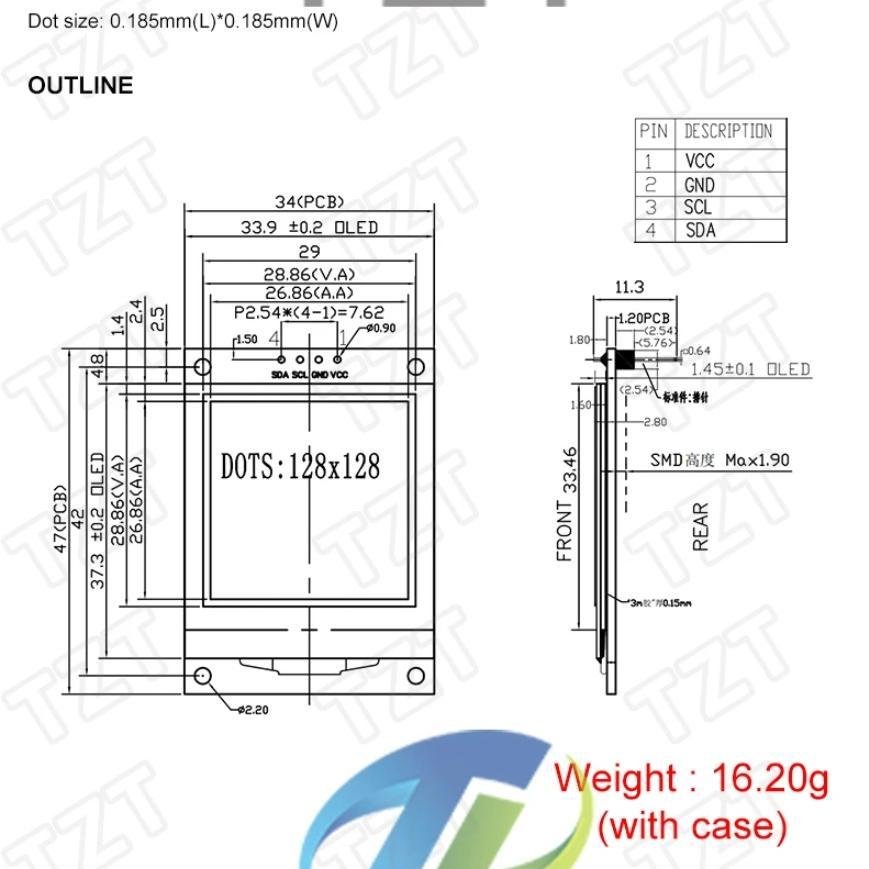

Mechanical specification :
1) Module size, L 34mm, W 47mm, T 11.3Maxmm
2) Visible area (V/A), L 28.86mm, W 28.86mm
3) Effective area (A/A), L 26,86mm, W 26,86mm
4) Point distance, L 0.21mm, W 0.21mm
5) Dot size, L 0.185mm, W 0.185mm
