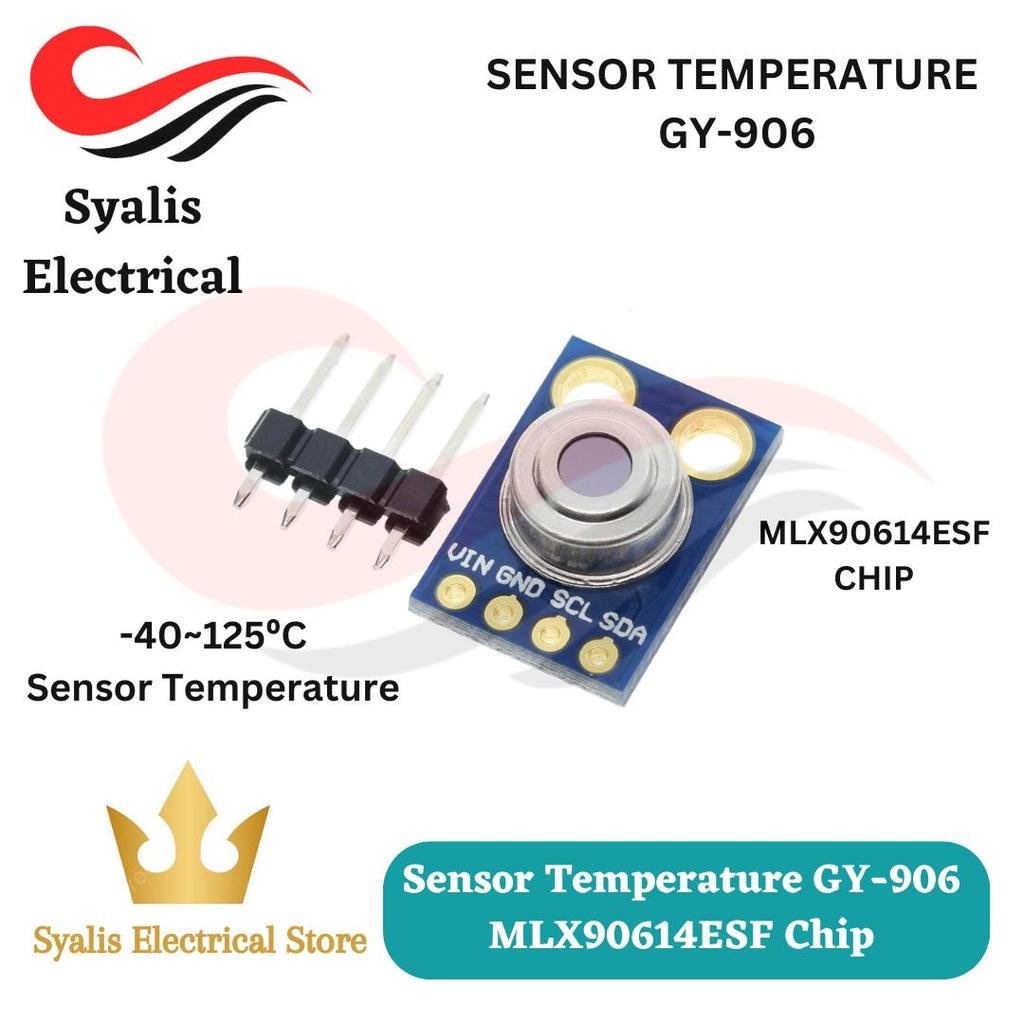

GY-906 MLX90614ESF MLX90614 Sensor Temperature I2C Interface [Syalis]

SYALIS ELECTRICAL STORE

=======================

Feature :

Using a Chip : MLX90614

Communication : standard IIC communication protocol Up for sale is a MELEXIS MLX90614ESF-BAA-000-TU-ND non-contact infrared thermometer for use with Arduino, or any microcontroller that can communicate with it through it’s 12C interface. This sensor comes with a breakout board with all of the components needed for operation and two types of pins. They are unsoldered. Please indicate if you would like one or the other soldered. There are two solder jumpers for the I2C interface that may or may not need to be soldered depending on your application, but will not for most uses.

Features and Benefits:

– Small size, low cost

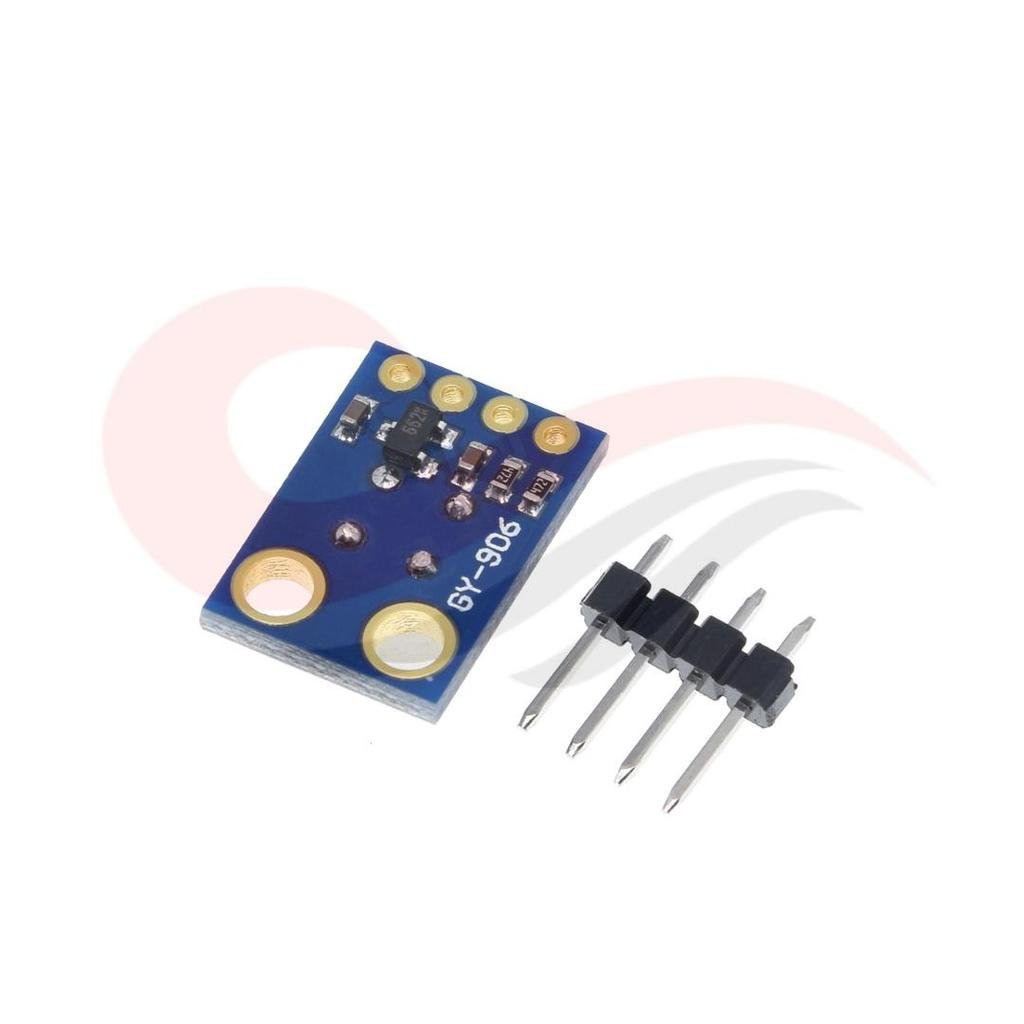

Mounted on a breakout board with two types of pins

– 10k Pull up resistors for the I2C interface with optional solder jumpers

– Easy to integrate

Factory calibrated in wide temperature range:

– -40…+ 125 C for sensor temperature and

-70 …+ 380 C for object temperature.

– High accuracy of 0.5 C over wide temperaturerange

– (0…+50 C for both Ta and To) High (medical) accuracy calibration

Measurement resolution of 0.02 C

Single and dual zone versions

SMBus compatible digital interface

Customizable PWM output for continuousreading

Simple adaptation for 8… 16V applications

Sleep mode for reduced power consumption

Different package options for applications and measurements versatility
Automotive grade

Applications Examples:

– High precision non-contact temperature measurements

– Thermal Comfort sensor for Mobile Air Conditioning control system

– Temperature sensing element for residential, commercial and industrial building airconditioning Windshield defogging

– Automotive blind angle detection

– Industrial temperature control of moving parts

– Temperature control in printers and copiers

– Home appliances with temperature control

– Healthcare

– Livestock monitoring

– Movement detection

– Multiple zone temperature control – up to 127 sensors can be read via common 2 wires

– Thermal relay / alert

– Body temperature measurement

=======================
