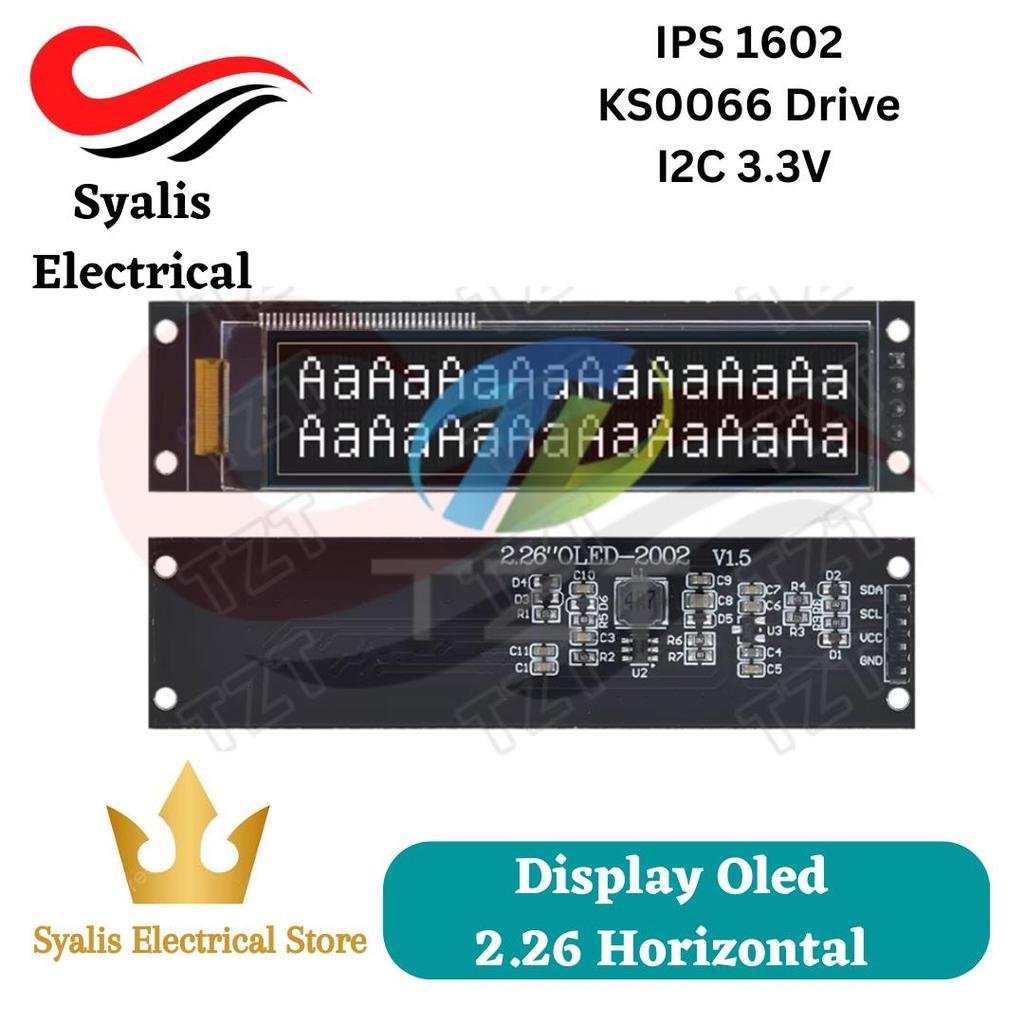

Display 2.26 Inch 4PIN White OLED Screen Module IPS 1602 Character OLED Screen KS0066 Drive IC IIC Interface 3.3V For Arduino [Syalis]

SYALIS ELECTRICAL STORE

FUNCTIONS&FEATURES

Character count: 16 characters (5×8) x 2 lines
OLED material: PM_OLED
Color: White
LCM working voltage (VCC): 3-5 V;
OLED screen working voltage (Vdd1) 2.2-3.5V (V1_oPT=1″)
OLED driving voltage Vop: 11.2~12.5V
Working temperature: -40 °C~85 °C
Storage temperature: -40 °C~90c
Connection method/driver IC: COG/KSO066
35P spacing 0.62mm FPC seat
Interface: IIC

MECHANICAL SPECIFICATIONS
Module size: 81.20mm (L)* 20.50mm (W) 5.30Maxmm (T) Visible area (V/A): 58.22mm (L)* 13.52mm (W) Effective area (A/A): 56.22mm (L)* 11.52mm (W) Point distance: 0.57mm (L)* 0.67mm (W)
Point size: 0.60mm (L)* 0.70mm (W)
Word width: 2.97mm (L); Font spacing: 3.55mm (L)
Word height: 5.57mm (W); Line spacing: 5.95mm (W)
