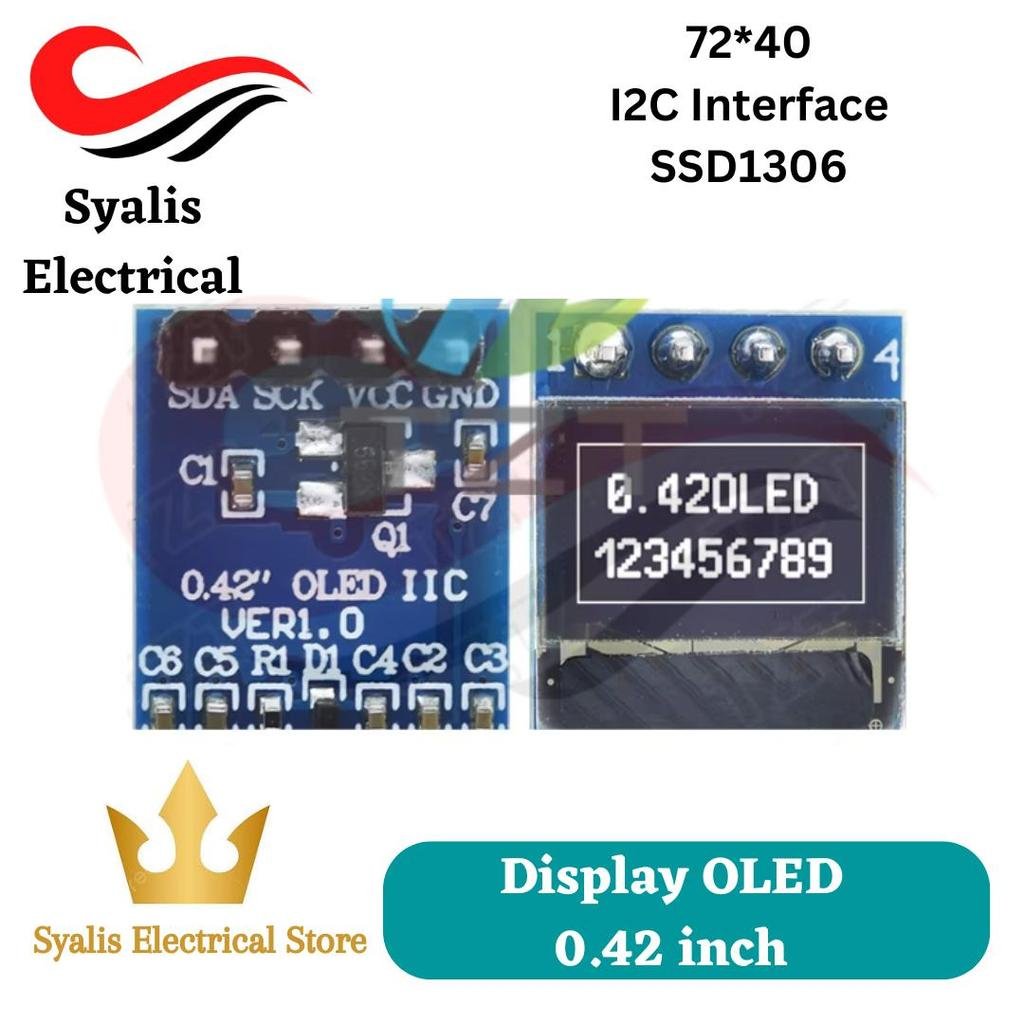

Display 0.42″ 0.42 Inch White OLED Display LCD Module 72X40 Serial Screen White Color I2C IIC SPI Interface SSD1306 72*40 [Syalis]

Name: Display 0.42" 0.42 Inch White OLED Display LCD Module 72X40 Serial Screen White Color I2C IIC SPI Interface SSD1306 72*40 [Syalis]
SKU: EM-DOLED042
Price: 27000 IDR
Availability: InStock

Rp 27.000~~Rp 30.000~~ (-10%)

Status:Stok 99

SKU: EM-DOLED042 Category: EM - Supplier

SYALIS ELECTRICAL STORE

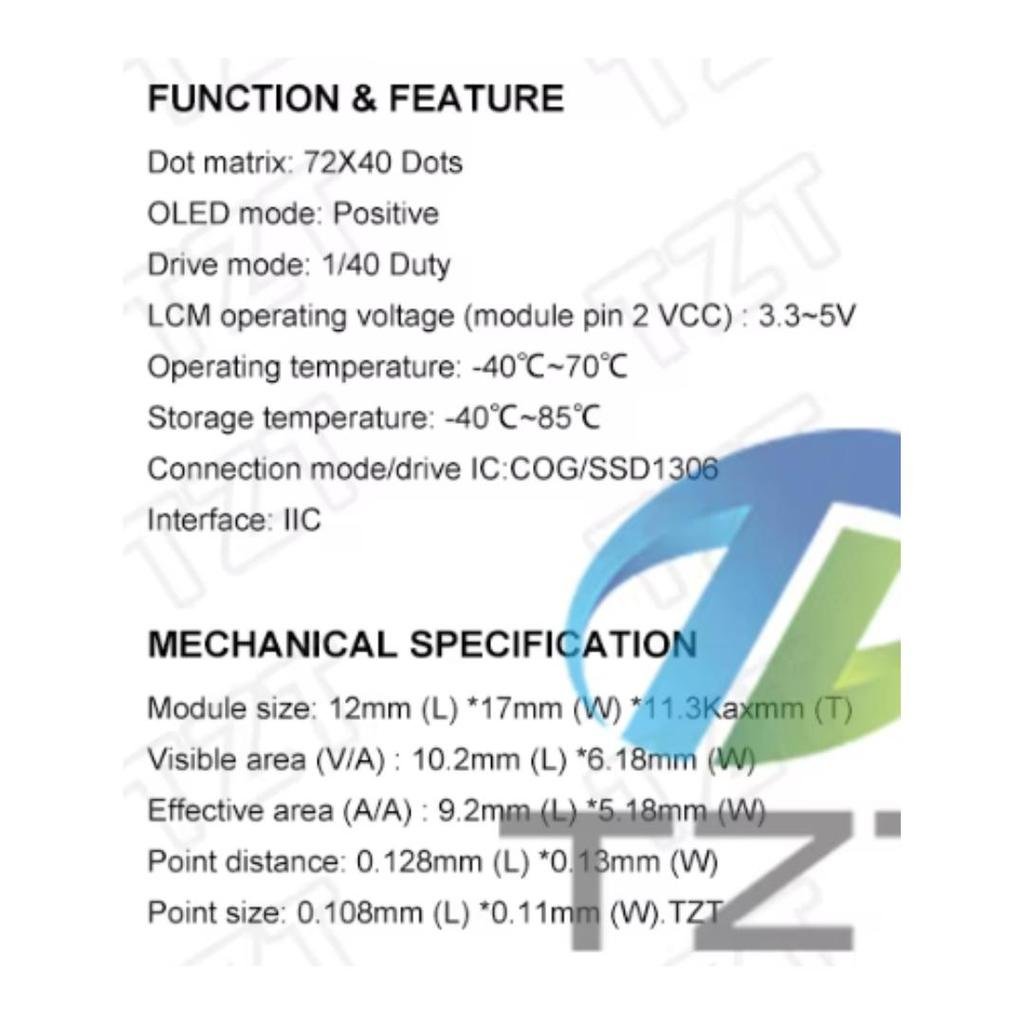

FUNCTION & FEATURE
Dot matrix: 72X40 Dots
OLED mode: Positive
Drive mode: 1/40 Duty

LCM operating voltage (module pin 2 VCC): 3.3-5V
Operating temperature: -40°C-70°C
Storage temperature: -40°C~85°C
Connection mode/drive IC:COG/SSD1306 Interface: IIC
Interface

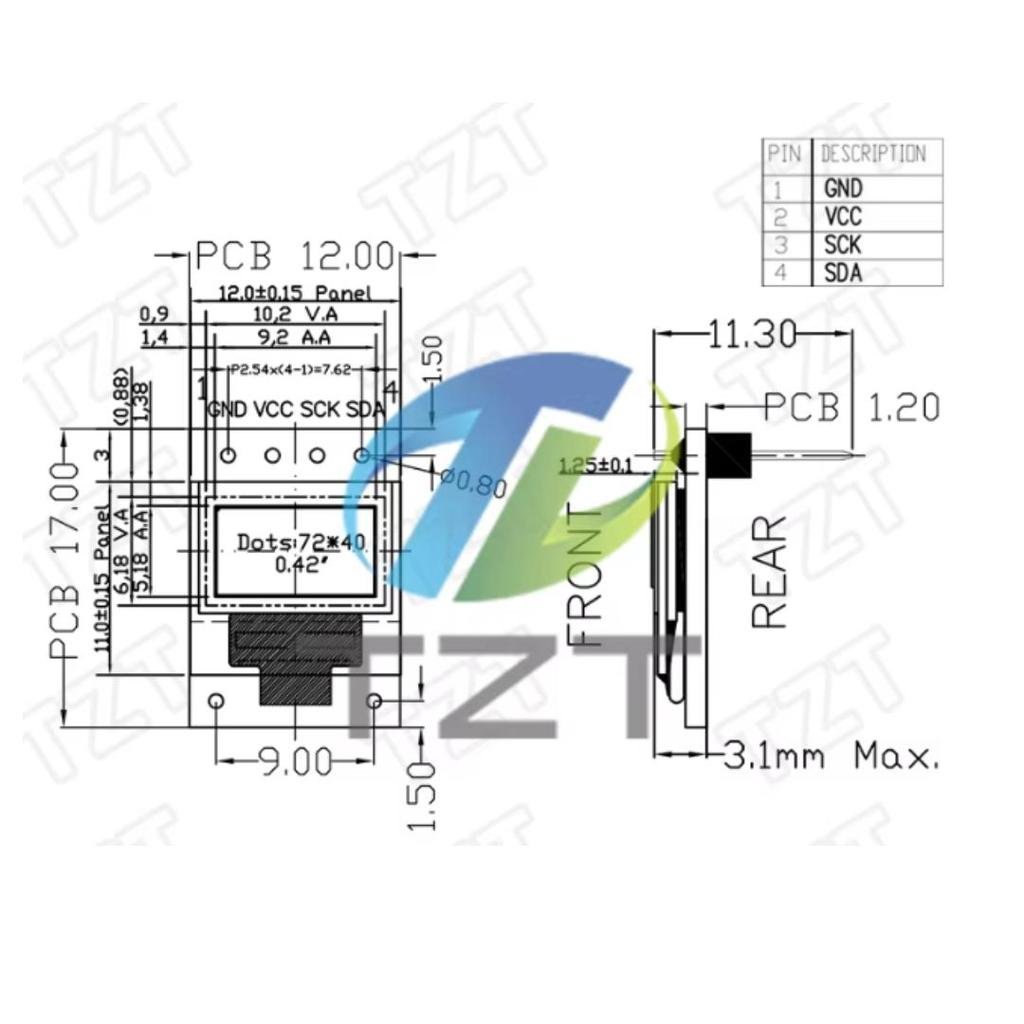

MECHANICAL SPECIFICATION
Module size: 12mm (L) *17mm (W) *11.3Kaxmm (T)
Visible area (V/A): 10.2mm (L) *6.18mm (W)
Effective area (A/A): 9.2mm (L) *5.18mm (W) Point distance: 0.128mm (L) *0.13mm (W) Point size: 0.108mm (L) *0.11mm (W).
