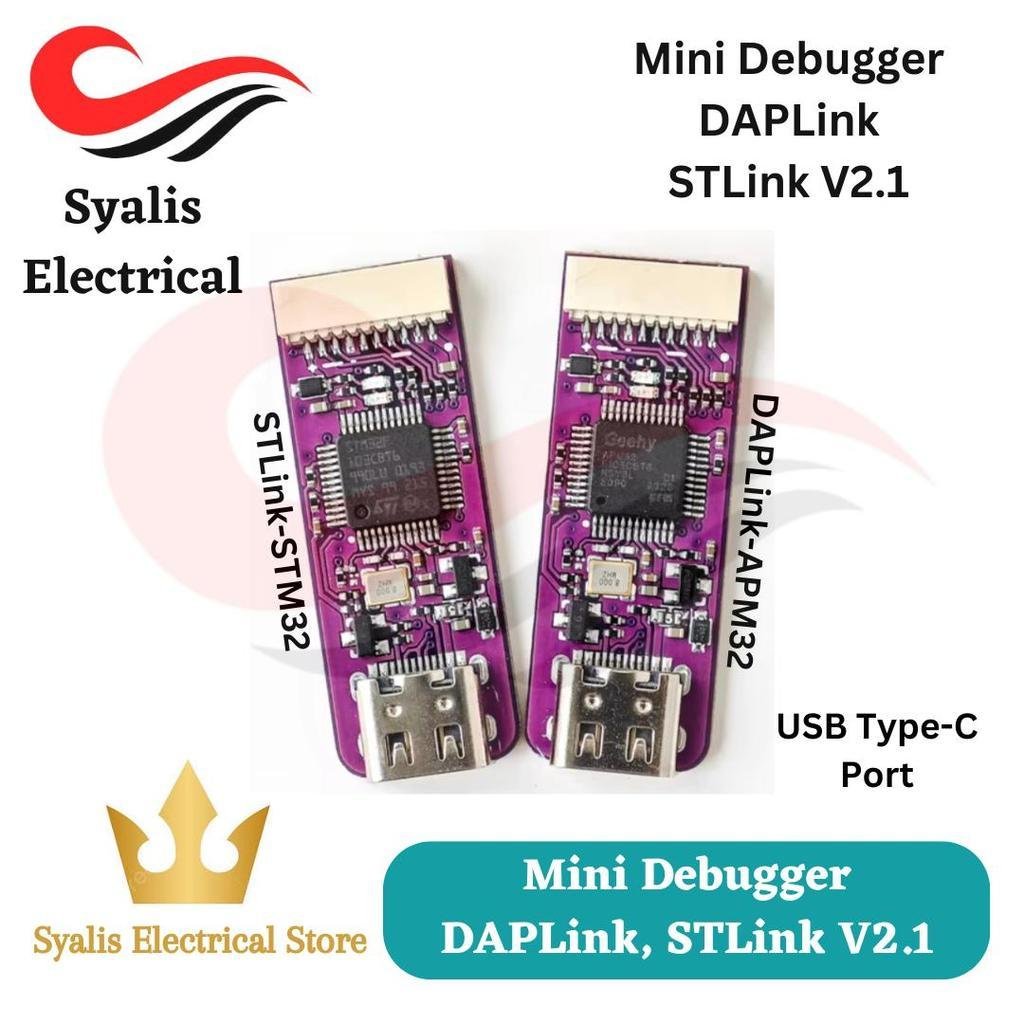

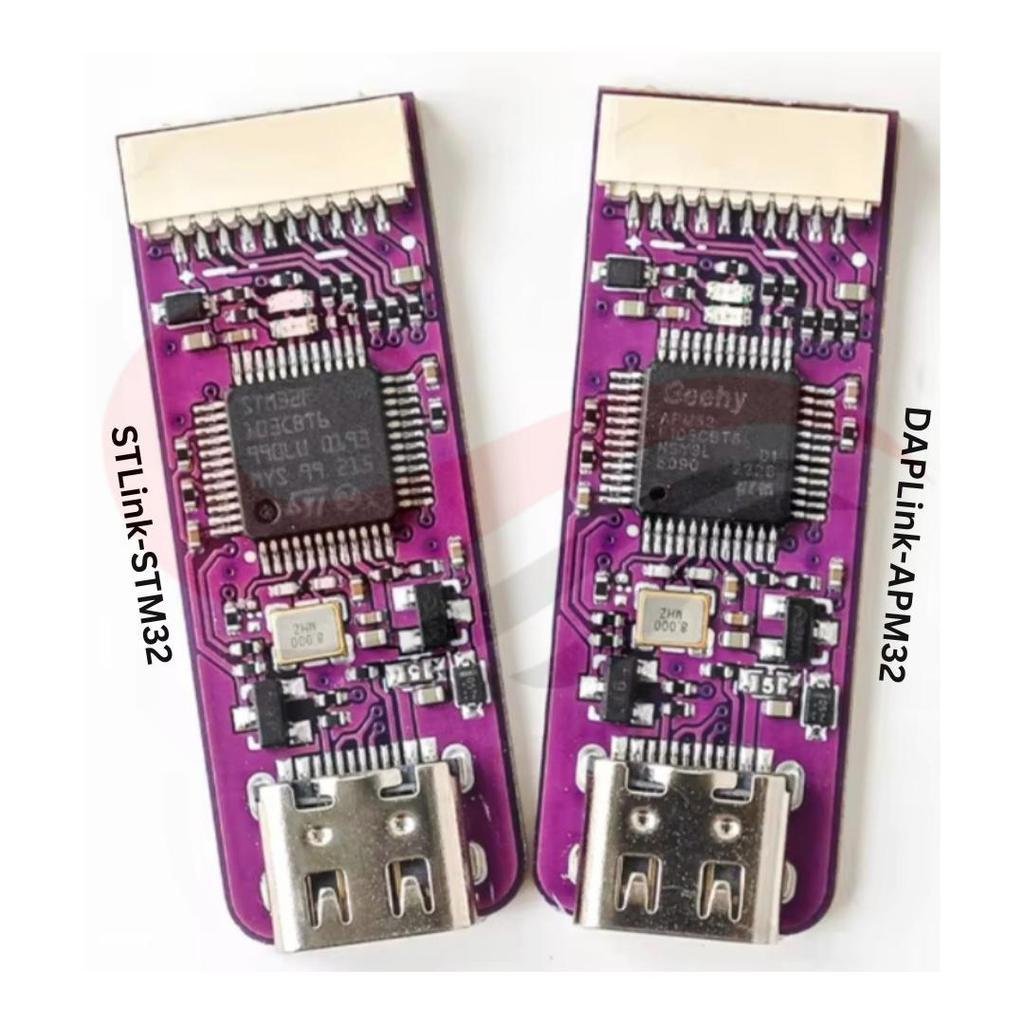

WeAct Studio MiniDebugger

The STLink Version is V2.1, Chip is STM32F103CBT6

The DapLink Chip is APM32F103CBT6

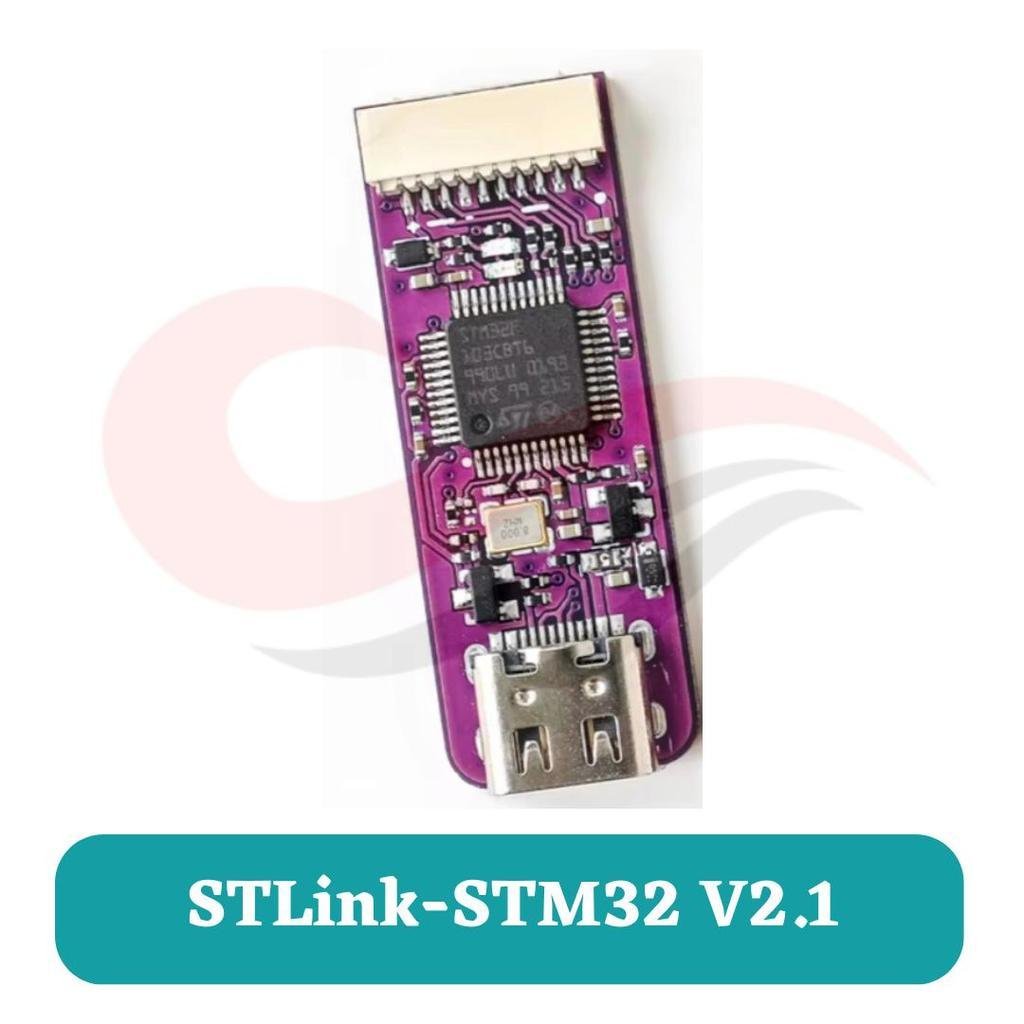

WeAct Studio STLINK V2.1

STLINK V2.1 is a peripheral based on STM32F103CBT6 microcontroller, which is used for debugging and programming with STM32 series microcontrollers.

It supports a SWD debugging interface and connects to a computer via USB. STLINK V2.1 can be integrated with many debugging environments, such as Keil, IAR, STM32CubeIDE, etc. It also supports OpenOCD and can use GDB for command-line debugging.

STLINK V2.1 has good reliability and stability. It also has many useful features, such as debugging combined with firmware upgrade capabilities. In addition, STLINK V2.1supports password protection, read/write protection, and hardware interface locking.

All in all, STLINK V2.1 is a powerful debugging and programming tool for STM32 that makes the development of embedded applications much simpler and easier.

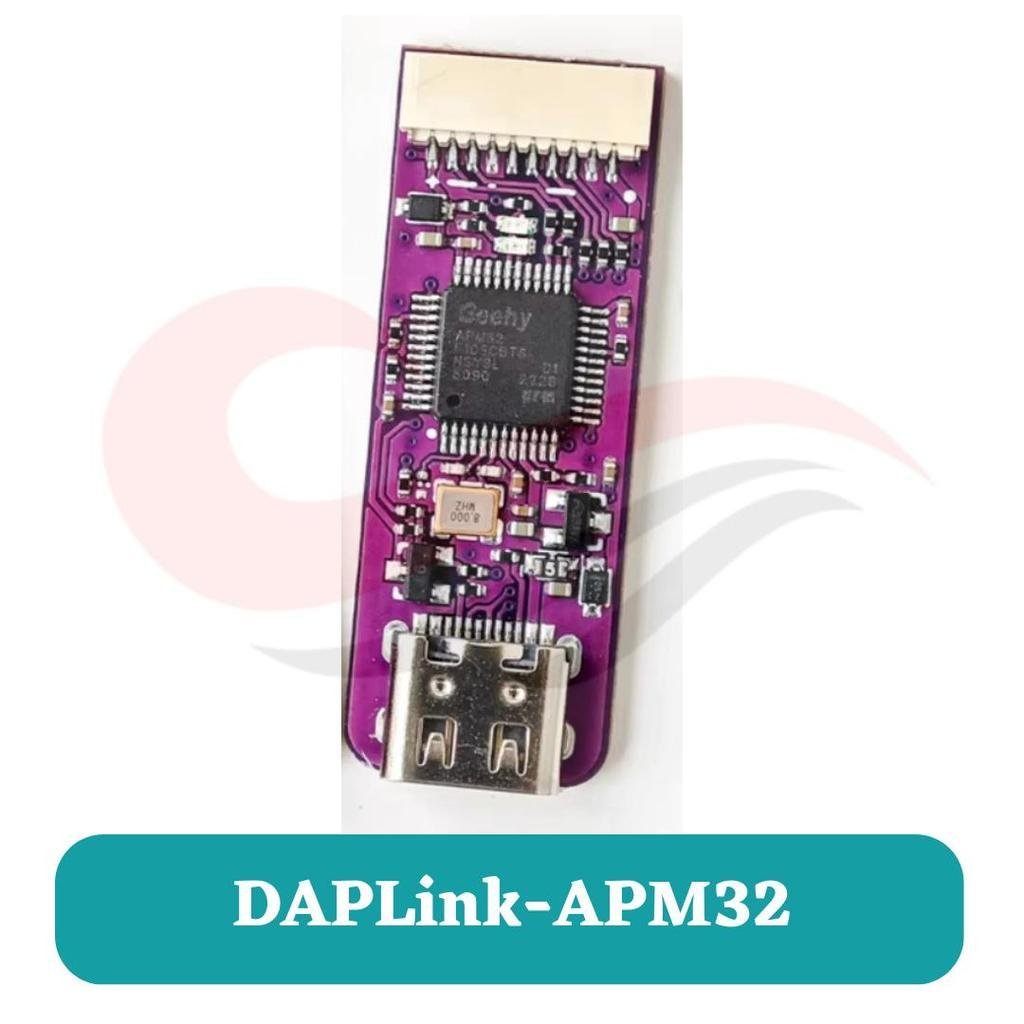

WeAct Studio DAPLink

DAPLink is an open-source debugging and programming interface firmware for ARM Cortex-M microcontrollers. It provides a bridge between a computer and the target microcontroller, allowing the user to program and debug the microcontroller using software tools such as Mbed Studio, Keil MDK, or IAR Embedded Workbench. DAPLink supports several communication protocols, including SWD and UART, and can be used with a wide range of development boards and evaluation kits. It also includes features such as automatic firmware updates and a USB interface for easy connectivity to a computer. DAPLink is maintained by ARM and is widely used in the embedded systems industry.
