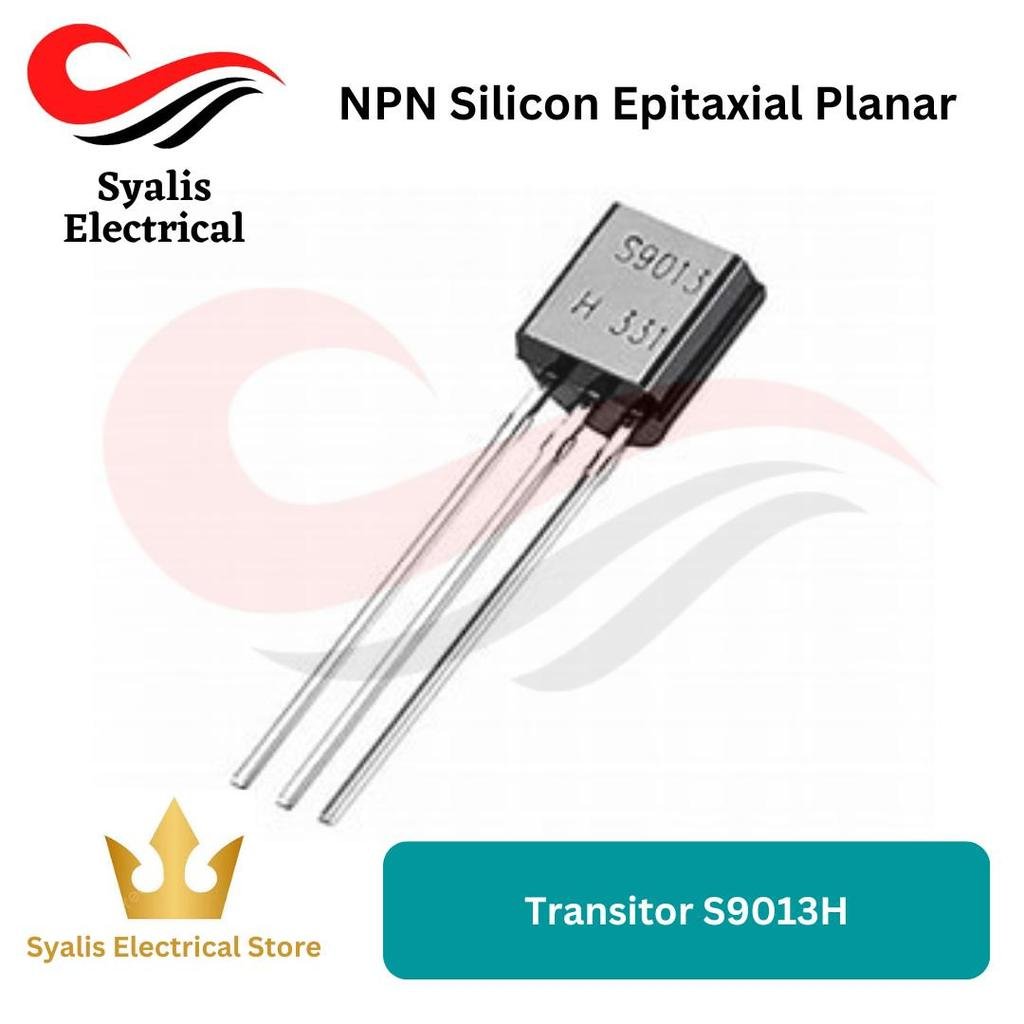

Jenis transistor: NPN Silicon Epitaxial Planar
Kode gain: H (high gain)
Paket: TO-92
Pinout (dilihat dari depan, kaki di bawah):
Pin 1 -> Emitter
Pin 2 -> Collector
Pin 3 -> Base
Spesifikasi Listrik Maksimum:
VCEO (Collector-Emitter Voltage): 40 V
VCBO (Collector-Base Voltage): 50 V
VEBO (Emitter-Base Voltage): 5 V
IC (Collector Current kontinyu): 500 mA
ICM (Peak Collector Current): 1 A
PC (Power Dissipation): 625 mW (Ta=25°C)
Tj (Junction Temperature): 150°C
Tstg (Storage Temperature): -55°C sampai +150°C
Karakteristik Listrik (Ta=25°C):
hFE (DC Current Gain): 144 – 400 (pada VCE=1V, IC=50mA)
VCE(sat) (Collector-Emitter Saturation Voltage): maks. 0.3 V (IC=500mA, IB=50mA)
VBE(sat) (Base-Emitter Saturation Voltage): maks. 1.2 V
fT (Transition Frequency): 150 MHz (tipe)
Cob (Output Capacitance): 7 pF (tipe)
=======================
