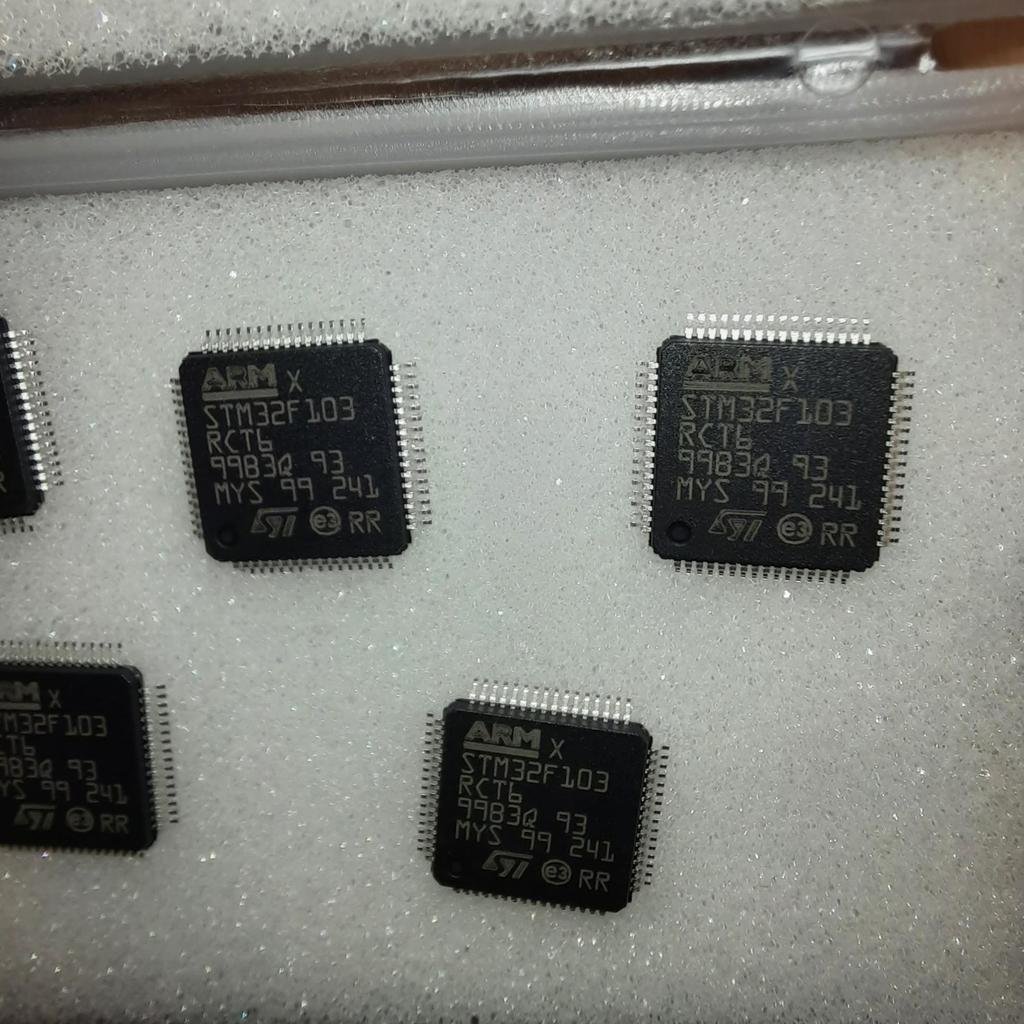

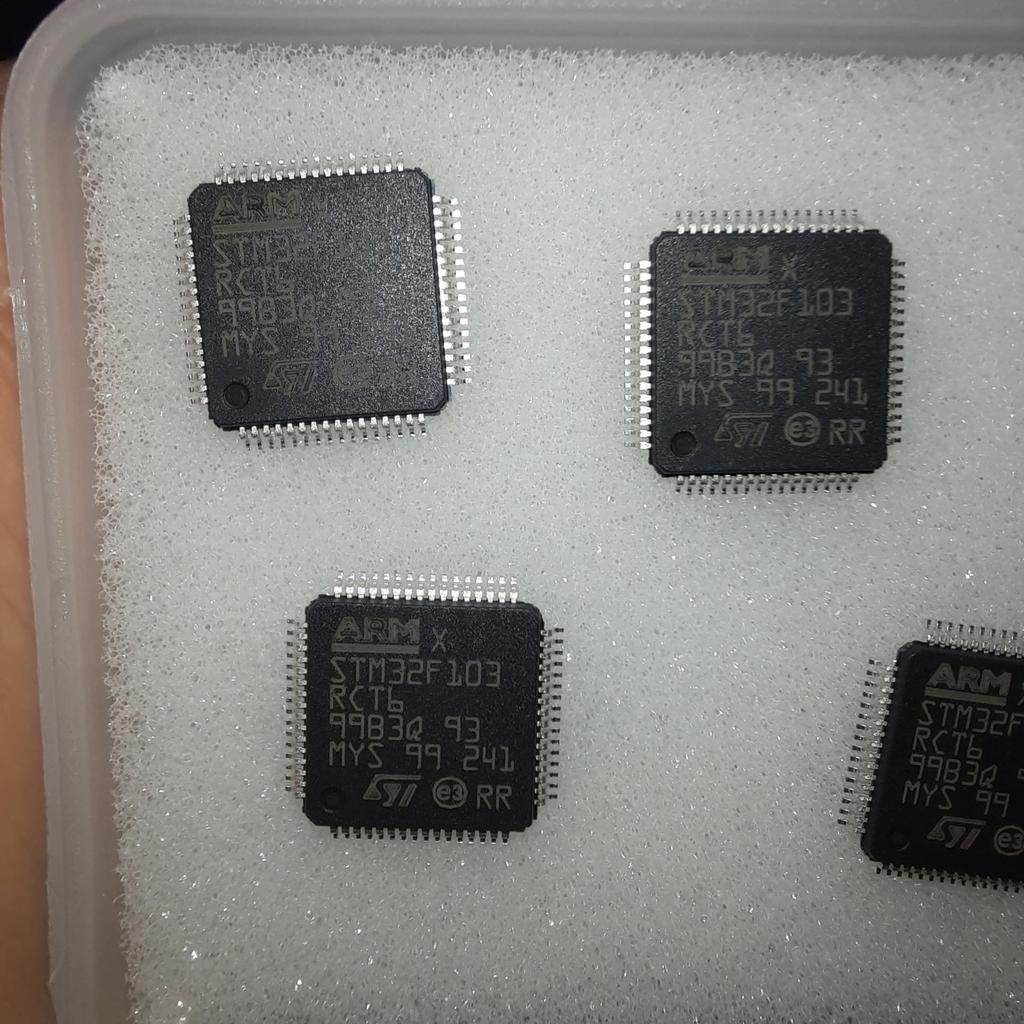

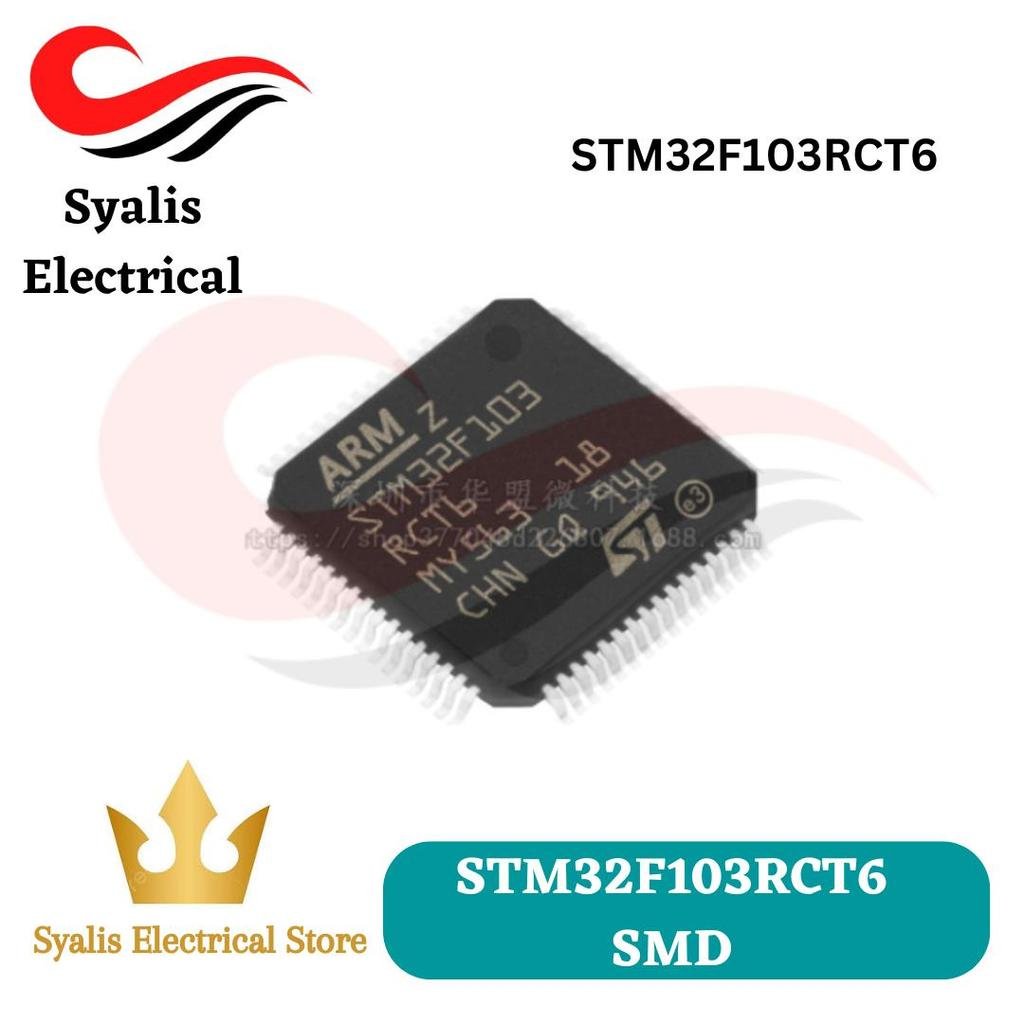

stm32f103rct6 STM32F103RCT6 arm stm32 [Syalis]

SYALIS ELECTRICAL STRORE

Product Features and Performance
Core Processor: ARM Cortex-M3

Core Size: 32-Bit Single-Core

Speed: 72MHz

Connectivity options include CANbus, I2C, IrDA, LINbus, SPI, UART/USART, and USB

Equipped with peripherals such as DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, and WDT

Program Memory Size: 256KB of FLASH type

RAM Size: 48KB

Internal Oscillator

Data Converters: A/D 16x12b, D/A 2x12b

Operating Temperature Range: -40°C to 85°C

Product Advantages
Advanced connectivity for flexible system integration

Comprehensive set of power-saving modes to enhance battery life in portable applications

High data bandwidth perfect for real-time application demands

Key Technical Parameters
Operating Voltage: 2V to 3.6V

Number of I/O: 51

Mounting Type: Surface Mount

Package / Case: 64-LQFP
