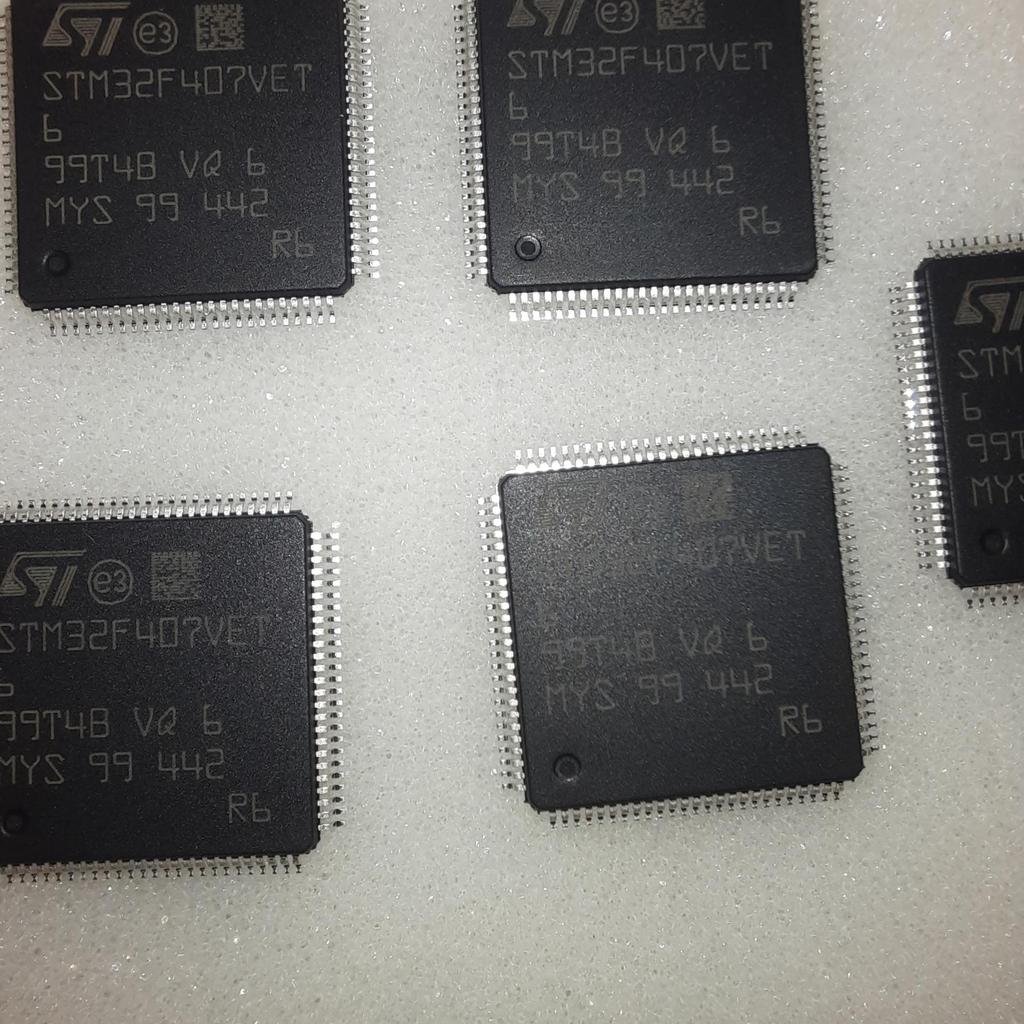

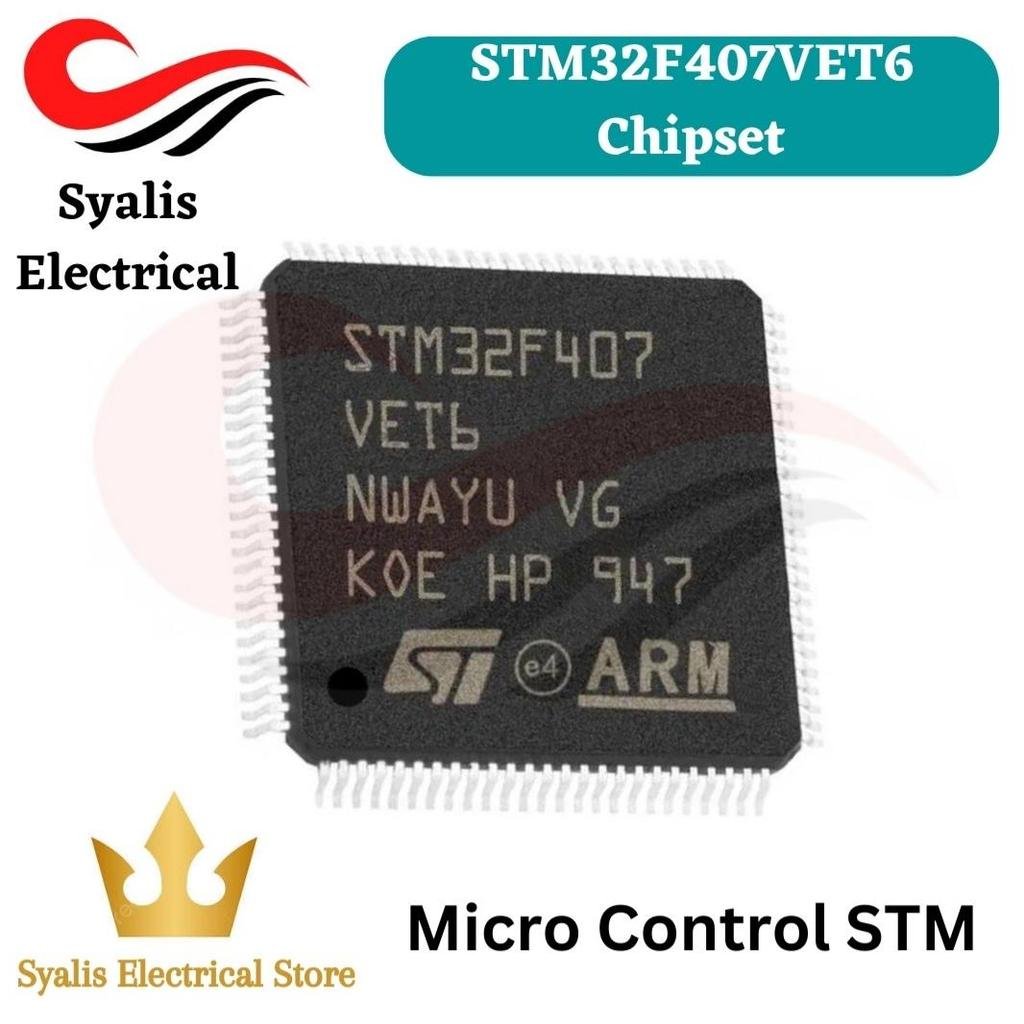

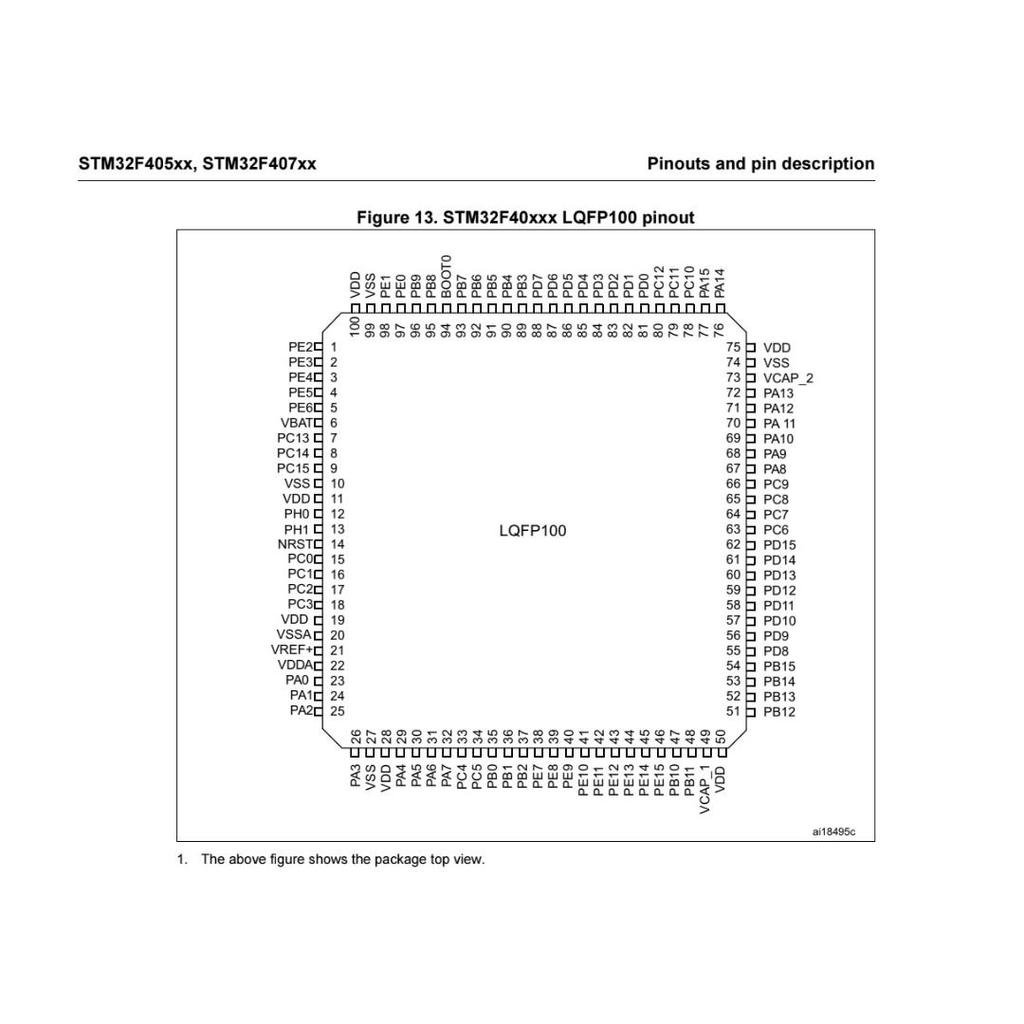

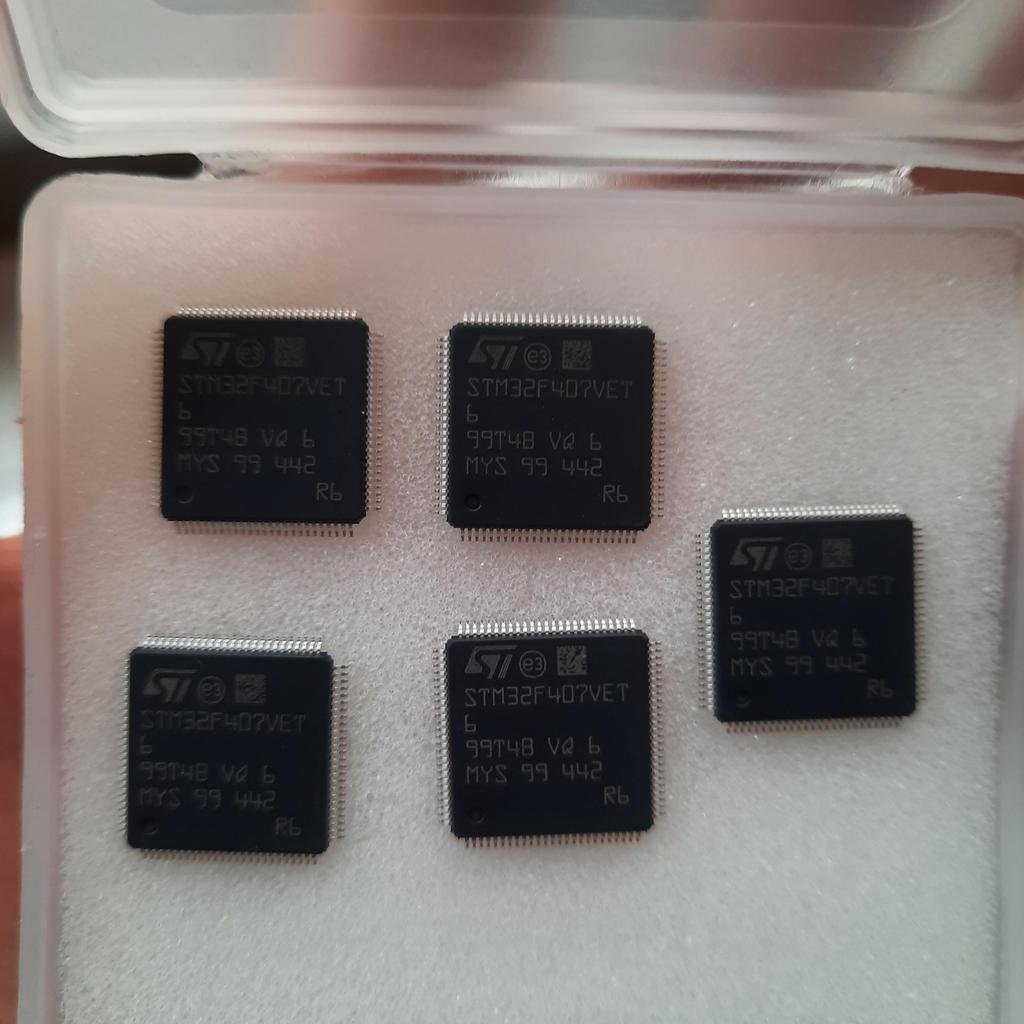

SYALIS ELECTRICAL STORE Deskripsi STM32F407VET6 STM32F407 VGT6 ARM Microcontroller STM32 32-bit AU01 ARM STM32F407VET6 Based Microcontroller STM32 32-bit LQFP100 AU01 Description: The STM32F407VGT6 is a part of STM32F4 series 32 Bit Microcontroller. It has an storage temperature ranging from – 65 C to + 150 C and it is available in LQFP-100 Packaging. The STM32F407 family is based on the high-performance ARMCortex-M4F 32-bit RISC core operating at a frequency of up to 168 MHz. The Cortex-M4F core features a Floating point unit (FPU) single precision which supports all ARM single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. Features: LCD parallel interface, 8080/6800 modes Clock, reset and supply management: 1.8 V to 3.6 V application supply and I/Os POR, PDR, PVD and BOR 4-to-26 MHz crystal oscillator Internal 16 MHz factory-trimmed RC (1% accuracy) 32 kHz oscillator for RTC with calibration Internal 32 kHz RC with calibration Low Power Sleep, Stop and Standby modes VBAT supply for RTC, 2032 bit backup registers + optional 4 KB backup SRAM 312-bit, 2.4 MSPS A/D converters: up to 24 channels and 7.2 MSPS in triple interleaved mode 212-bit D/A converters General-purpose DMA: 16-stream DMA controller with FIFOs and burst support Debug mode: Serial wire debug (SWD) amp; JTAG interfaces Cortex-M4F Embedded Trace Macrocell Up to 140 I/O ports with interrupt capability: Up to 136 fast I/Os up to 84 MHz Up to 138 5 V-tolerant I/Os
