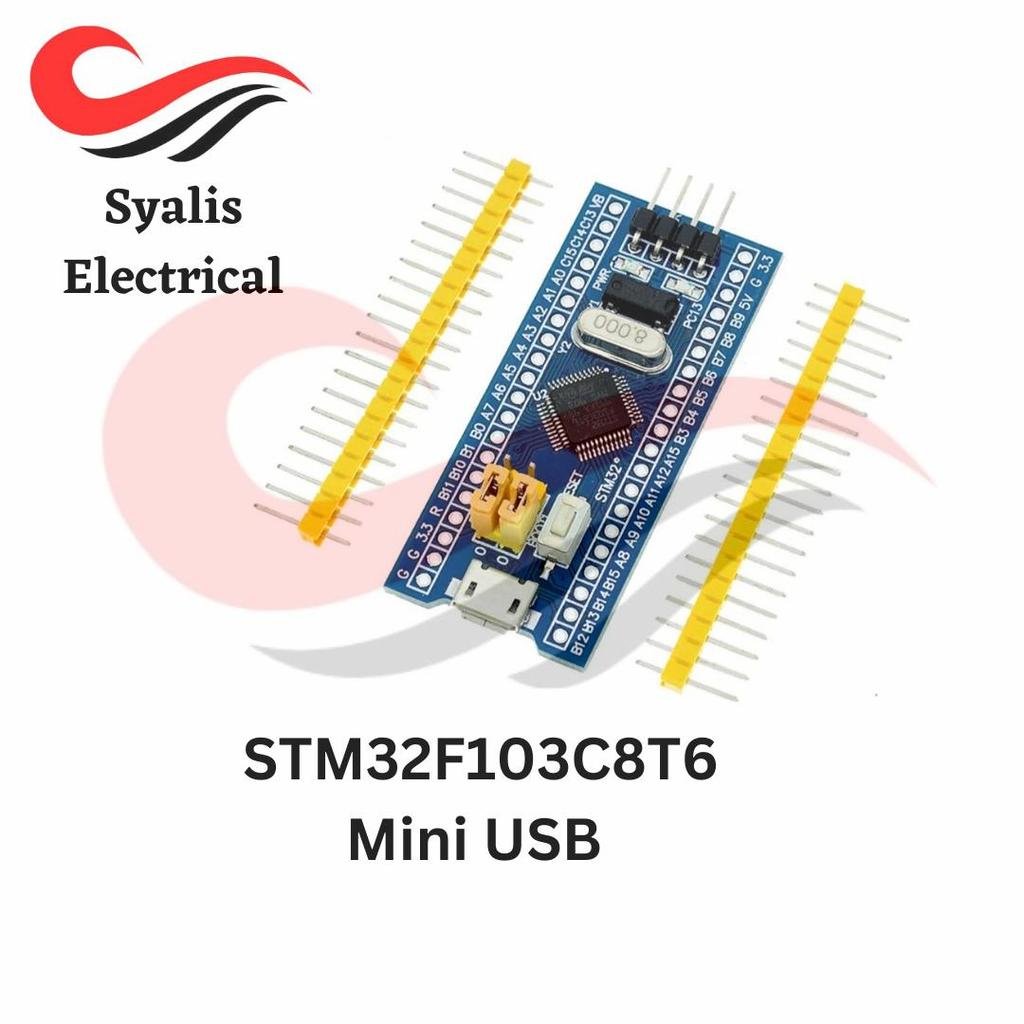

Minimum System STM32F103C8T6 adalah cara paling praktis dan murah untuk belajar pemrograman STM32, dibandingkan evaluation board lainnya (seperti nucleo, Discovery dll).

Meskipun harganya murah, minimun System ini bisa diprogram dengan berbagai IDE layaknya evaluation board pada umumnya, bisa menggunakan Keil uVision, CooCox CoIDE, MikroC hingga Arduino IDE (dengan plugin tambahan STMDUINO).

FITUR
* On-board Mini USB interface, you can give the board power supply and USB communication.
* On-board test indicator LED
* On-board reset button and power indicator LED
* On-board 100ma 3.3V Regulator
* All GPIO are led out and the names of the pins are marked
* After soldering the headers, you can directly plug the board onto the breadboard

SPESIFIKASI
* CPU Part Number: STM32F103C8T6
* Core: ARM 32 Cortex-M3 CPU.
* Debug mode: SWD (can be programmed with ST-LINK V2)
* CPU Internal Maximum Clock : 72MHz
* External Clock Source: 8MHz crystal
* 64K flash memory, 20K SRAM
* 2.0-3.6V power, I/O
* Reset(POR/PDR)
* Size:5.3cm x 2.2cm
