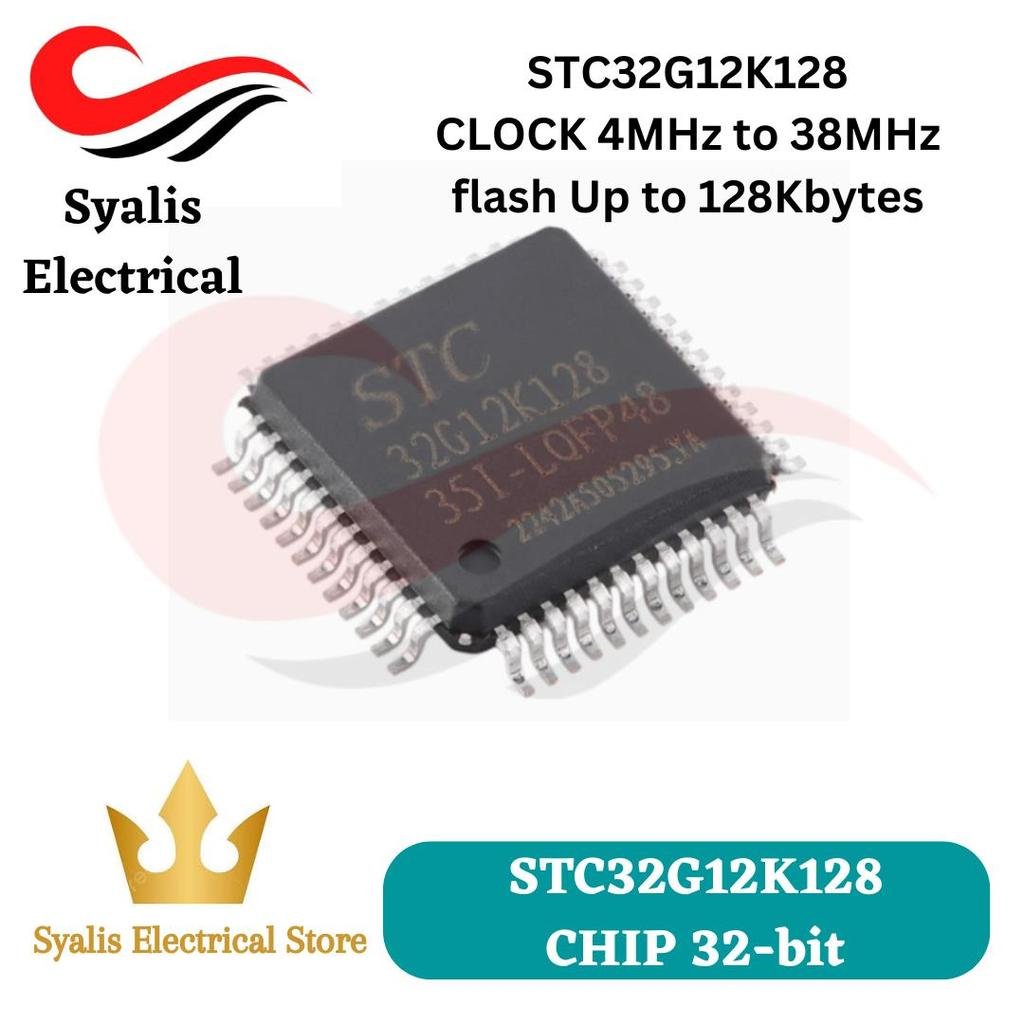

STC32G12K128-35I-LQFP48

Features:
Core
• Ultra-high speed 32-bit 8051 Core with single clock per machine cycle, which is called 1T and the speed is about 70 times faster than traditional 8051
• 49 interrupt sources and 4 interrupt priority levels
• Online debugging is supported
Operating voltage
• 1.9V~5.5V
• Built-in LDO
Operating temperature
• -40C ~ + 85C
Flash memory
• Up to 128Kbytes of Flash memory to be used for storing user code
• Configurable EEPROM size, 512bytes single page for being erased, which can be repeatedly erased more than 100 thousand times.
• In-System-Programming, ISP in short, can be used to update the application code. No special programmer is needed.
• Online debugging with single chip is supported, and no special emulator is needed. The number of breakpoints is unlimited theoratically.
• Support hardware emulation of SWD interface (requires STC-USB Link1 tool)
SRAM
• 4K bytes internal SRAM (EDATA)
• 8K bytes internal extended RAM (internal XDATA
• Notes on using xdata:
• When defining variables, single-byte variables can be defined in xdata, and multi-byte (2-byte, 4-byte) variables need to be defined in edata.
Clock
• Internal high precise RC clock IRC(IRC, range from 4MHz to 38MHz), adjustable while ISP and can be divided to lower frequency by user software.
• Error:±0.3% (at the temperature 25C)
• -1.35% – +1.30% temperature drift (at the temperature range of -40C to +85C)
• -0.76% – +0.98% temperature drift (at the temperature range of -20C to 65C)
• Internal 32KHz low speed IRC with large error
• External crystal (4MHz – 33MHz) and external clock
• Internal PLL output clock
• Users can freely choose the above 4 clock sources

===========================================
