Features:
1. The full voltage input (90 ~ 264 vac)
2. Low ripple and low noise
3. Output overload short circuit protection function
4. High efficiency and power density
5. Product design to meet the EMC and safety testing requirements

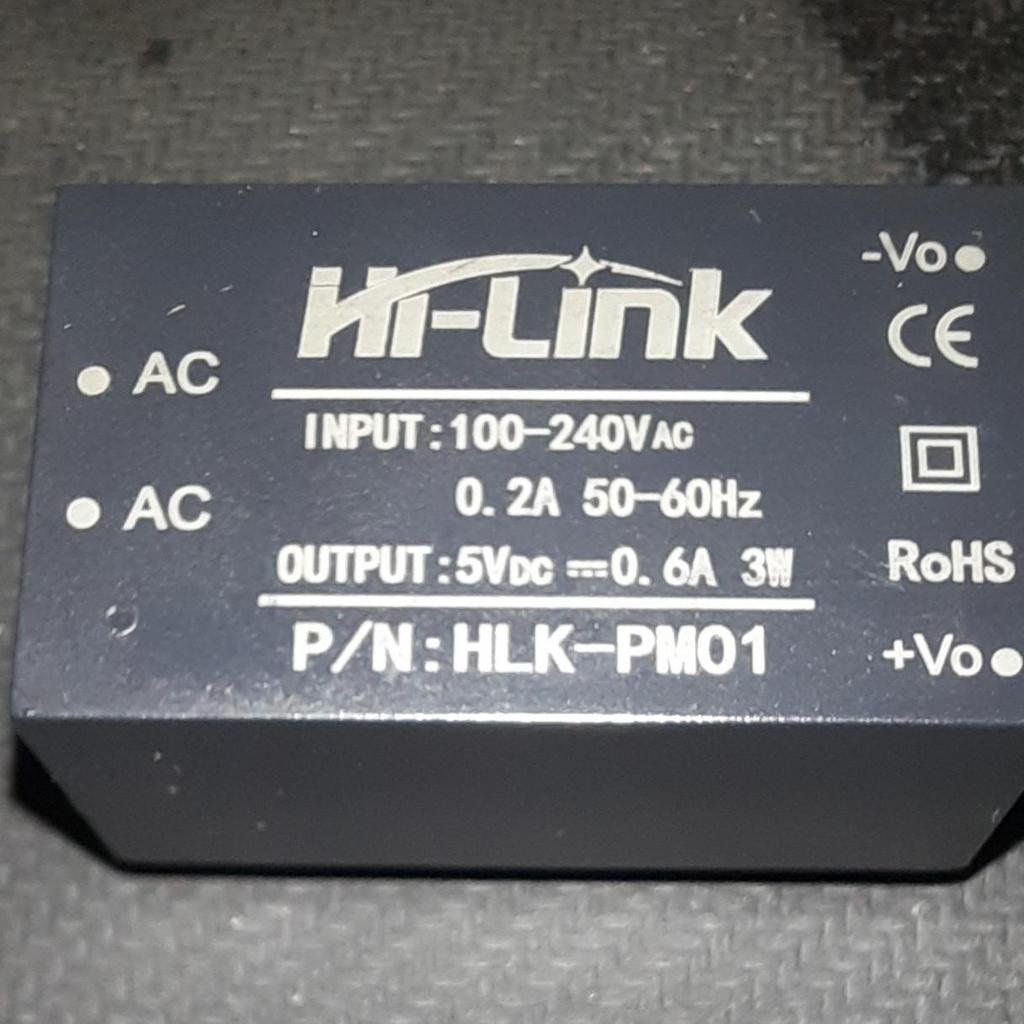

6. Low power consumption, green environmental protection, no-load loss < 0.1 W 7.100% load test Input : 100-240Vac, 50-60Hz Output : 3W The name of the project Technical indicators:Single bit Working temperature: - 20-60 +degree Storage temperature: + 80-40 -degree Relative humidity: 5-95.% The cooling way: Natural cooling The atmospheric pressure: 80-106Kpa The altitude :2000M or less vibration Vibration coefficient of 10 ~ 500 hz, 2 g10min. / 1 cycle, 60 min. The technical requirements:Single bit The rated input voltage: The input voltage range: Maximum input voltage:270 or less VAc Efficiency of low input voltage: Vin = 110 vac, output with 69 or more % High input voltage: Vin = 220 vac, output with 70 or more
