Features :
– Low on-resistance
– RDS(ON) = 28 m ohm MAX. (VGS = 4.5V, ID = 4A)
– RDS(ON) = 37 m ohm MAX. (VGS = 2.5V, ID = 3A)
– Use for Li-ion battery management applications

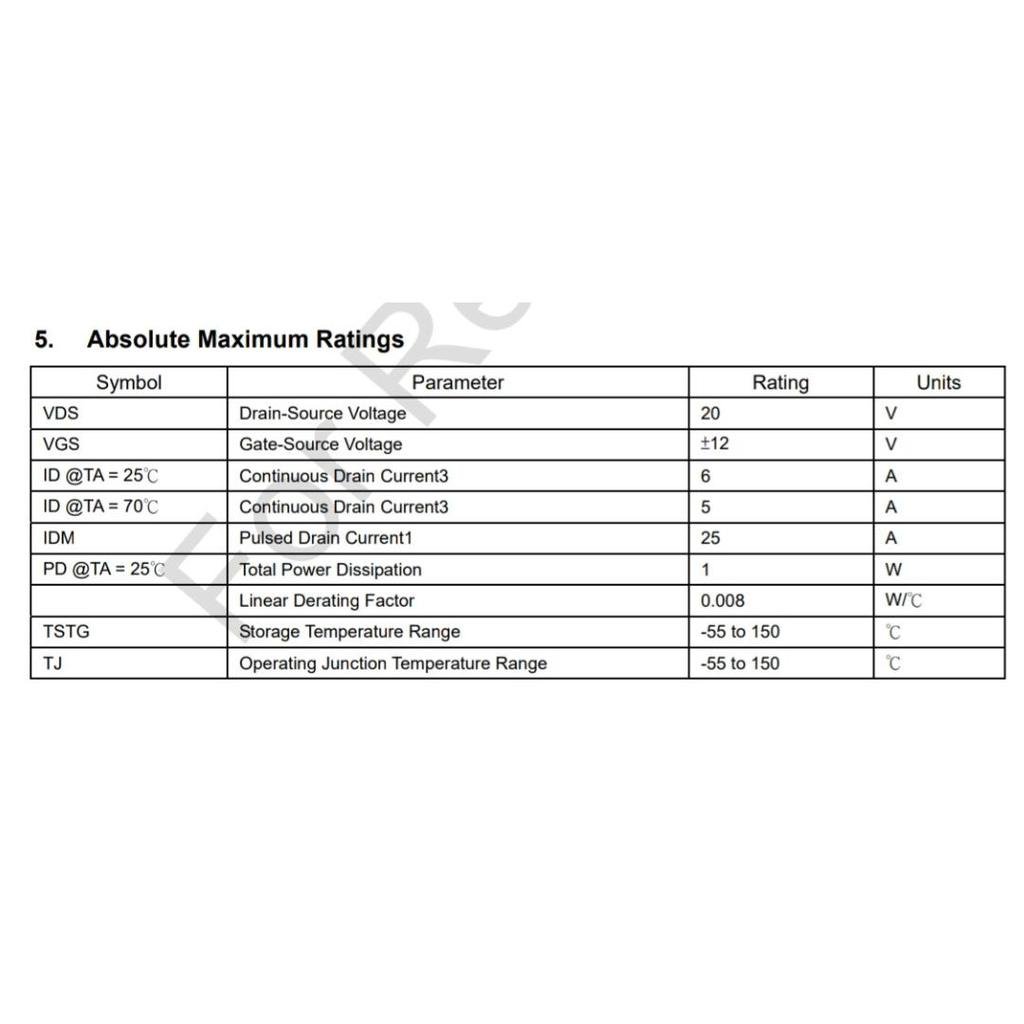

– VDS = 20V MAX. VGS = ±12V MAX.
– Continuous Drain Current3 @TA = 25 C = 6A
– Continuous Drain Current3 @TA = 70 C = 5A
– Pulsed Drain Current1 = 25A
– Total Power Dissipation = 1W
– Linear Derating Factor = 0.008W/C
– Storage Temperature Range = -55 to 150C
– Operating Junction Temperature Range = -55 to 150C

=======================
– Kami menjual berbagai macam kebutuhan electronik
– Segmentasi Display dan Chip – Butuh Jumlah banyak bisa japri aja gan
– Butuh barang impor lain bisa PO

*Selama katalog tayang stok masih ready sesuai jumlah *Jgn lupa video unboxing untuk klaim bila ada kendala
