Features:

– Low-noise receive gain.
– Signal activity LED indicates.
– High Gain, High Value, High Performance.
– Maximum output power of 8000mW by the Booster.
– Plug-and-play, Easy installation, no driver needed.
– Ideal for increase the 2400-2500Mhz frequency devices.
– Increase the effective range and coverage area of your Wi-Fi network.
– Simply attach the booster in between the standard antenna on a wireless router or wireless access point and watch your range grow.
– The amplified wireless signal may even penetrate complex environments with many walls and obstacles.
– Ideal for use with 2.4GHz Wireless LANs, Support 802.11b, 802.11g, 802.11n (2.4Ghz mode only).
– Fan-shaped all-metal shell greatly improves heat dissipation performance.

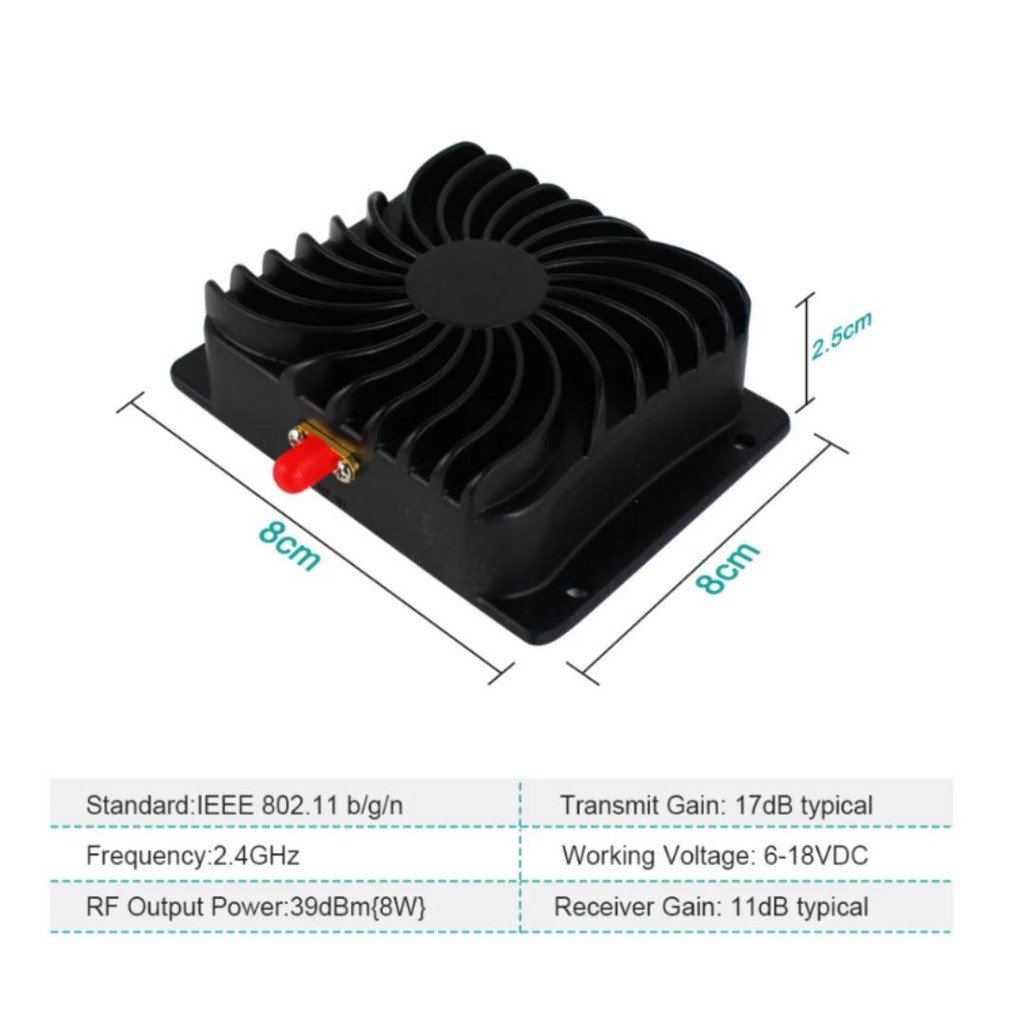

Specifications:

Operation Range: 2400-2500 MHz.Operation Mode: Bi-directional, half-duplex, Auto-Switching via carrier sensing.Frequency Response: ± 1dB over operation range.Input Power: 3dBm (Min.)-20dBm (Max.).Output Power: 8000mW/39dBm nominal Connector: SMA Receptacle, 50 ohm.Transmit Gain: 16-18dBm nominal.Receiver Gain: 10-12dBm.Receive Noise Figure: 3.0dBm nominal.Operating Temperature: -40 to 70 degree.Operating Humidity: Up to 95% relative humidity.Material: Cast AluminumINPUT: 100-240V 0.3A 50/60HZOUTPUT:12V 1.5ALED Indicator Status: Transmit: Green; Receive: Red; Transceiver switch: Orange (composite color of green and red)

Note:

1. The item need connect with the Access Point Router together, then it can work and the Access Point Router is NOT included.Your device must be SMA antenna detachable Connector when used it , for example SMA detachable antenna router.

2. “No Power”option only antenna, no amplifier or power supply, Please pay attention to the product name when placing an order!

3.Please use within the input power range, excessive power may burn out the equipment or cause it to malfunction!

AB007 Input Trigger Power:Min: 3dBm Max: 20dBm

AB003 Input Trigger Power:Min: 3dBm Max: 30dBm

AB018 Input Trigger Power:Min: 3dBm Max: 23dBm

AB011 Input Trigger Power:Min: 0dBm Max: 10dBm

===========================================
