Display TFT 2.31 Inch 8PIN SPI 262K Color LCD Module ILI9342 Controller For Arduino [Syalis]

SYALIS ELECTRICAL STORE

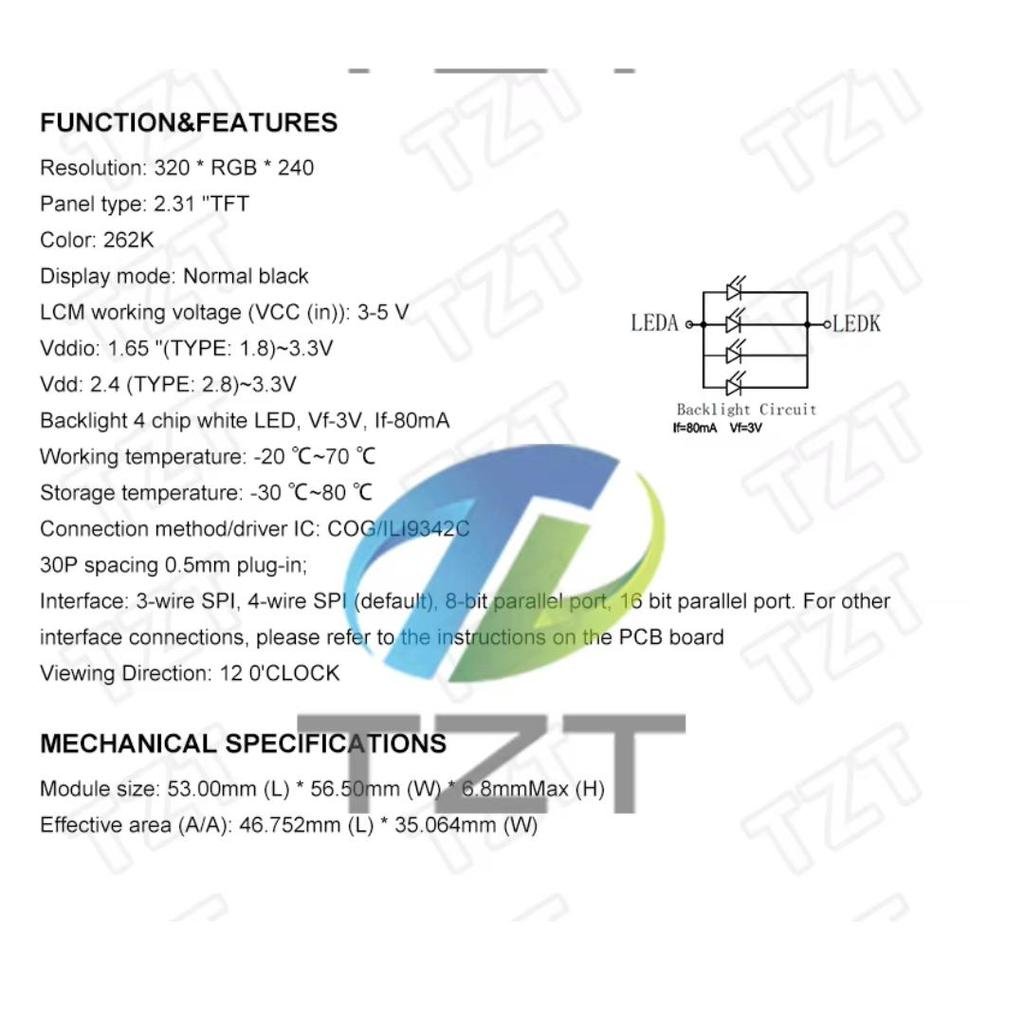

FUNCTION&FEATURES
Resolution: 320 * RGB * 240
Panel type: 2.31 “TFT Color: 262K
Display mode: Normal black
LCM working voltage (VCC (in)): 3-5 V
Vddio: 1.65 “(TYPE: 1.8)~3.3V
Vdd: 2.4 (TYPE: 2.8)~3.3V
Backlight 4 chip white LED, Vf-3V, If-80mA Working temperature: -20 °C~70 °C
Backlight Circuit
If=80mA Vf=3V
Storage temperature: -30 °C~80 °C
Connection method/driver IC: COG/IL19342C
30P spacing 0.5mm plug-in;

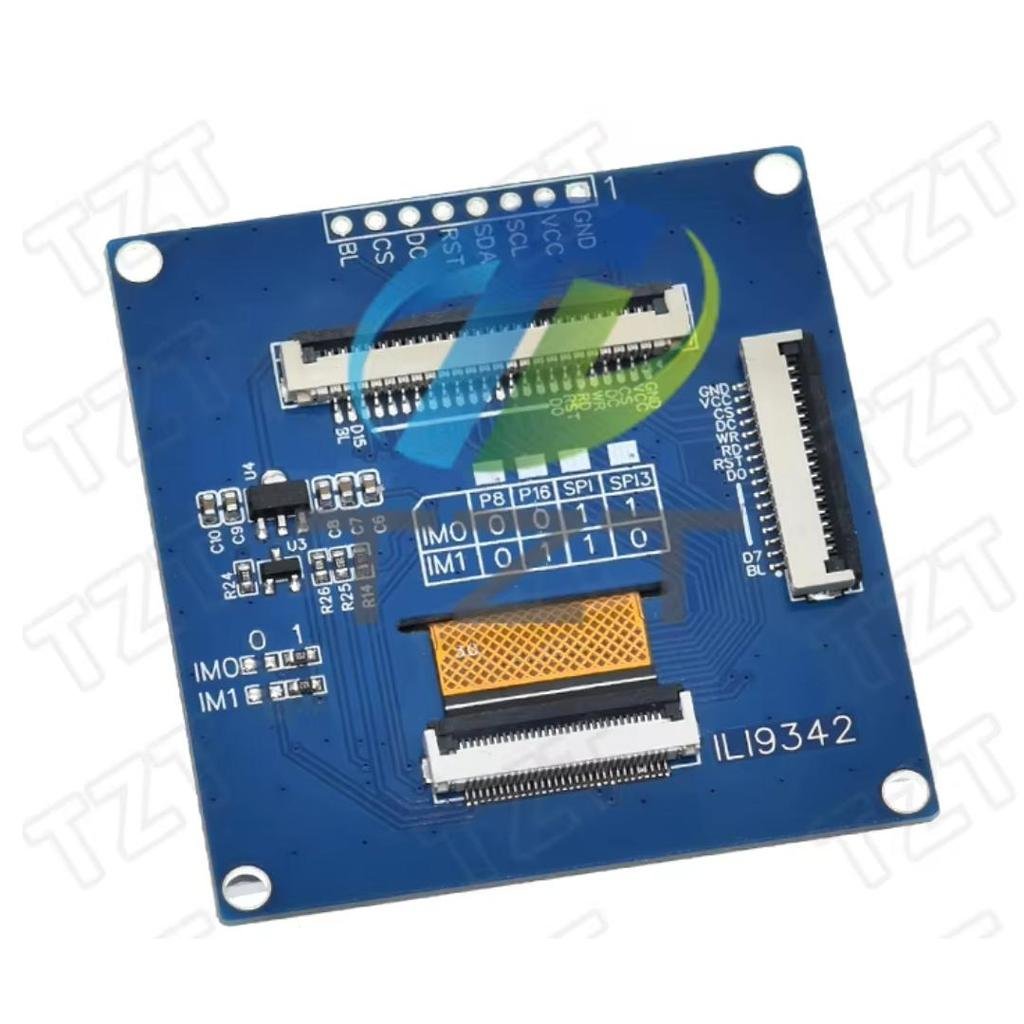

Interface: 3-wire SPI, 4-wire SPI (default), 8-bit parallel port, 16 bit parallel port. For other interface connections, please refer to the instructions on the PCB board
Viewing Direction: 12 O’CLOCK

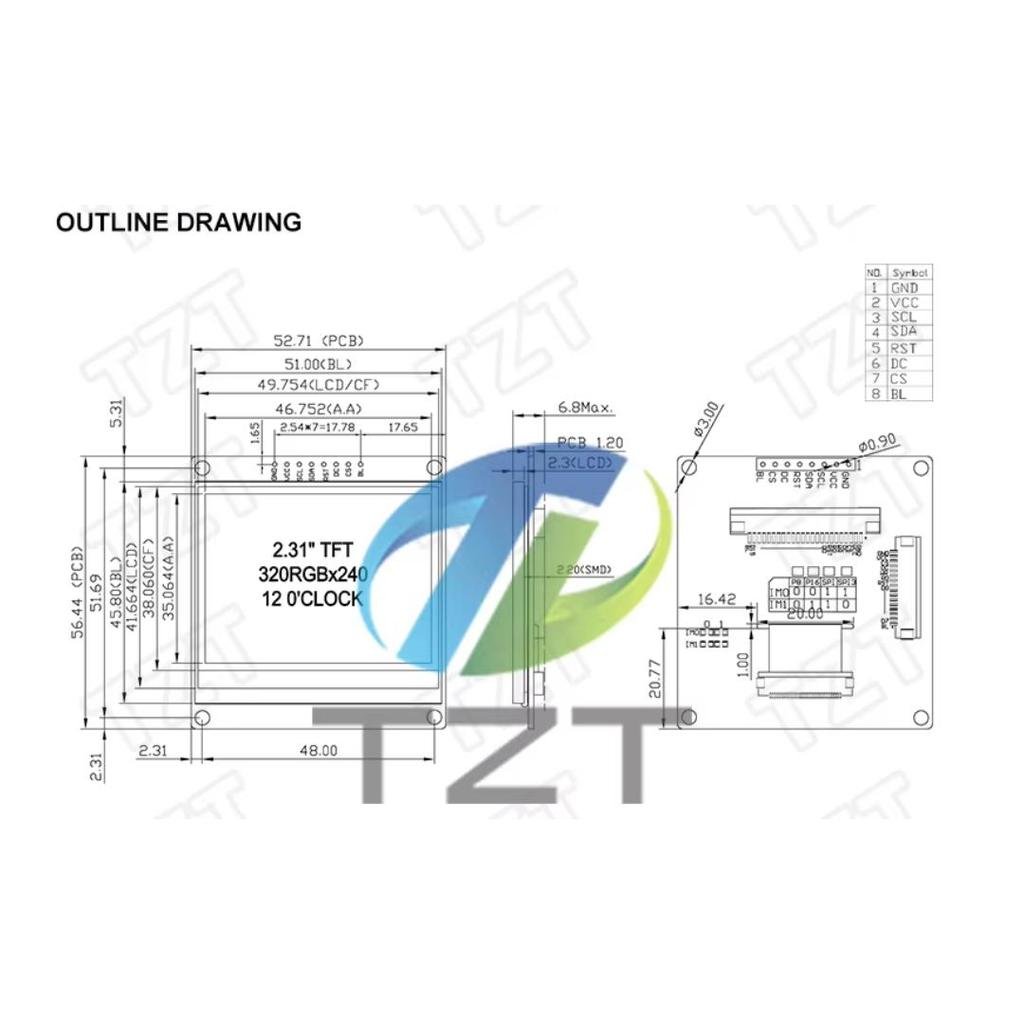

MECHANICAL SPECIFICATIONS

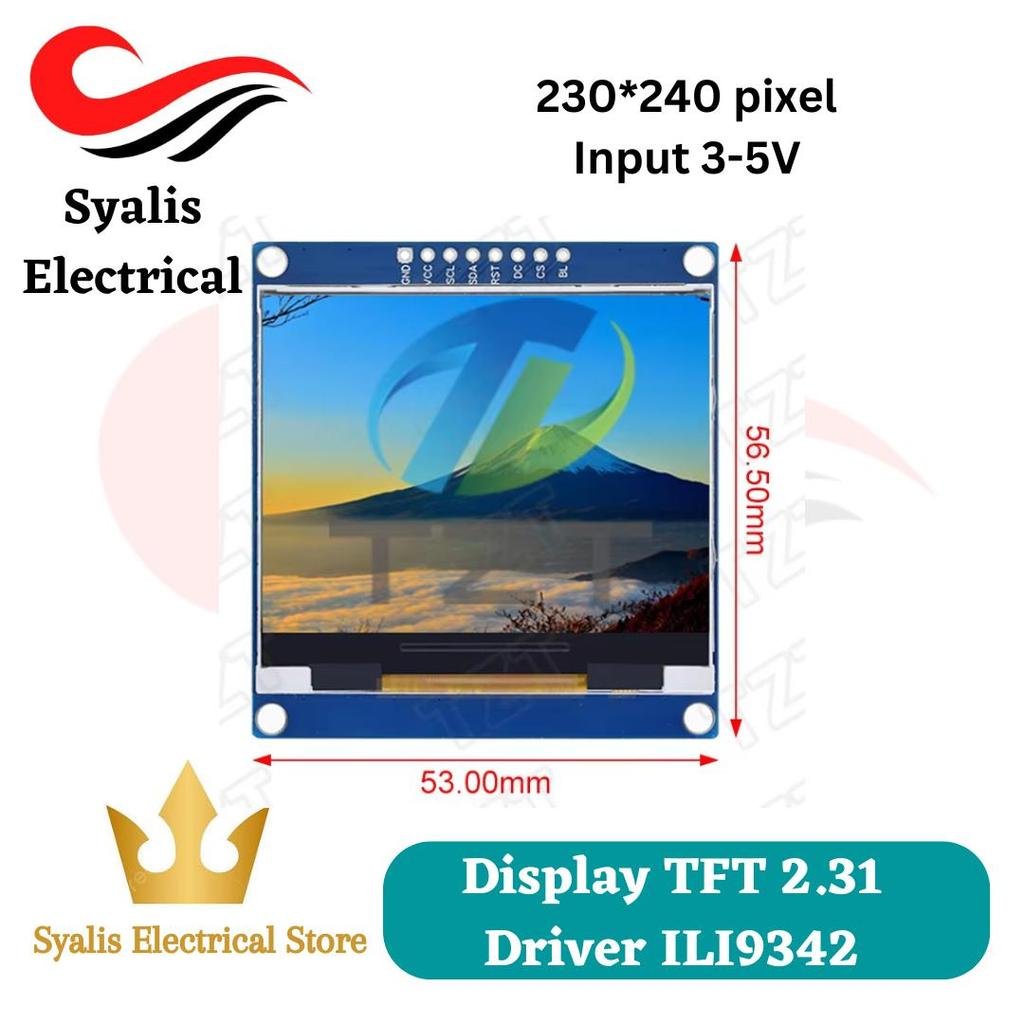

Module size: 53.00mm (L) * 56.50mm (W) 6.8mm Max (H) Effective area (A/A): 46.752mm (L)* 35.064mm (W)
