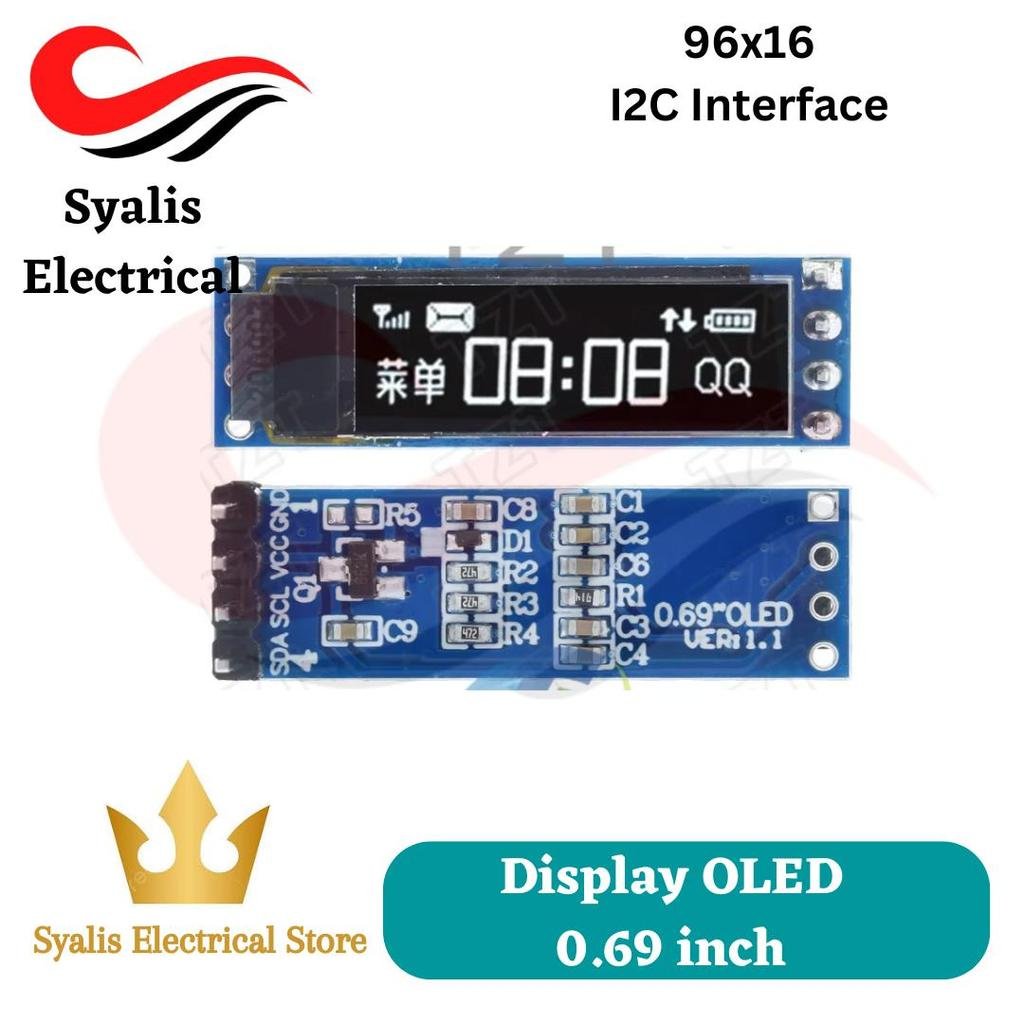

Display 0.69 inch 96×16 OLED Display Module White Display 0.69″ SSD1306 LCD Screen Control Board For Arduino 3-5.5V IIC Interface [Syalis]

SYALIS ELECTRICAL STORE

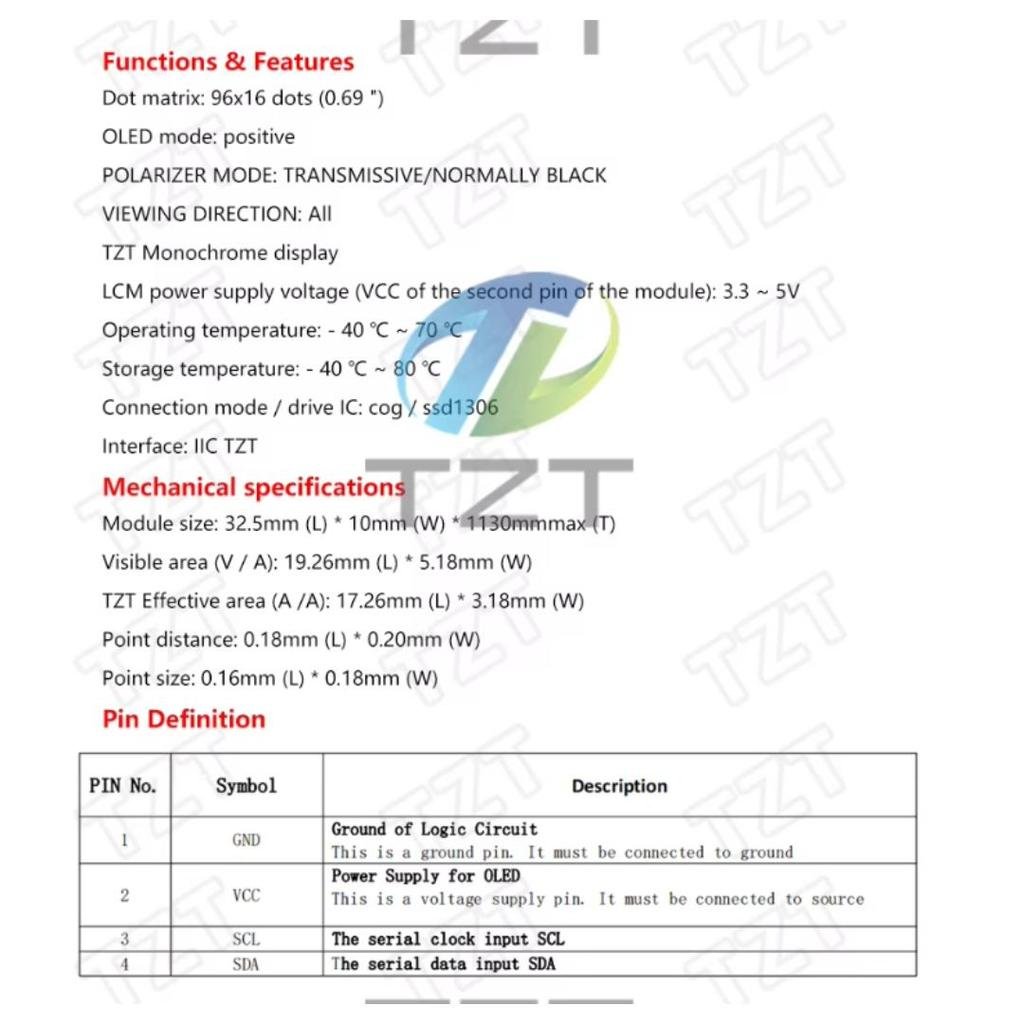

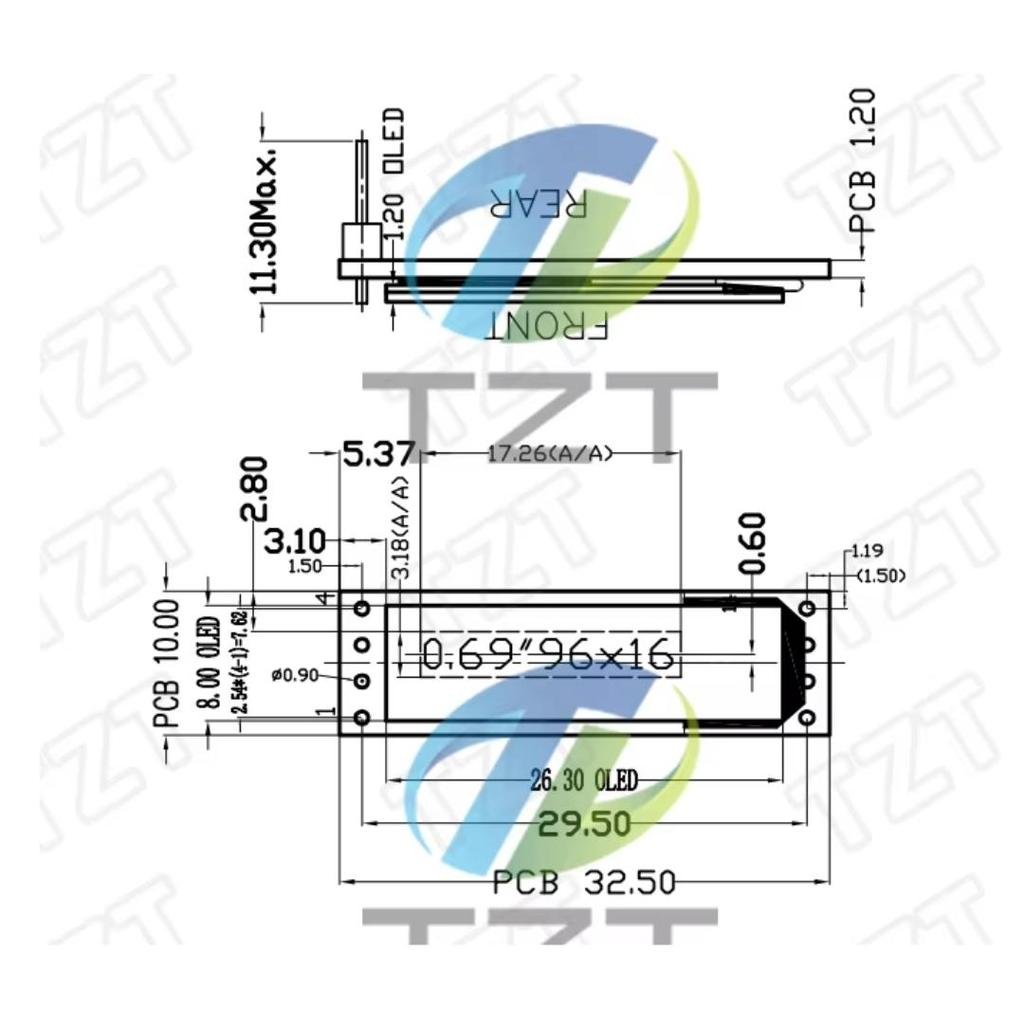

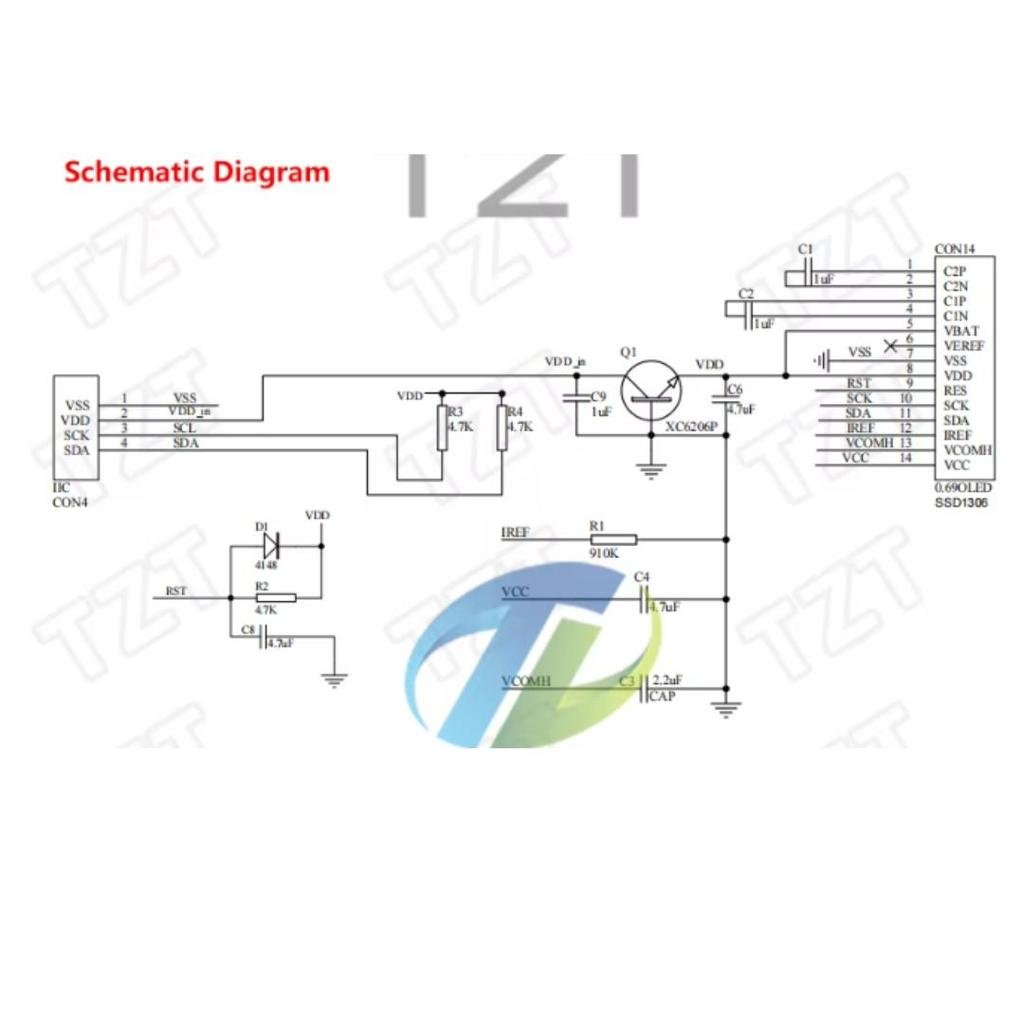

Functions & Features Dot matrix: 96×16 dots (0.69″) OLED mode: positive POLARIZER MODE: TRANSMISSIVE/NORMALLY BLACK VIEWING DIRECTION: All TZT Monochrome display TZT LCM power supply voltage (VCC of the second pin of the module): 3.3~ 5V Operating temperature: -40 °C~70 °C Storage temperature: -40 °C~ 80 °C Connection mode / drive IC: cog/ssd1306 Interface: IIC TZT Mechanical specifications IZT TZT TZT TZT Module size: 32.5mm (L) * 10mm (W) 1130mmmax (T) Visible area (V/A): 19.26mm (L) * 5.18mm (W) TZT Effective area (A /A): 17.26mm (L) * 3.18mm (W) Point distance: 0.18mm (L) * 0.20mm (W) Point size: 0.16mm (L) * 0.18mm (W) Pin Definition PIN No. Symbol Ground of Logic Circuit 1 GND Description This is a ground pin. It must be connected to ground Power Supply for OLED This is a voltage supply pin. It must be connected to source 2 VCC 3 SCL The serial clock input SCL 4 SDA The serial data input SDA
