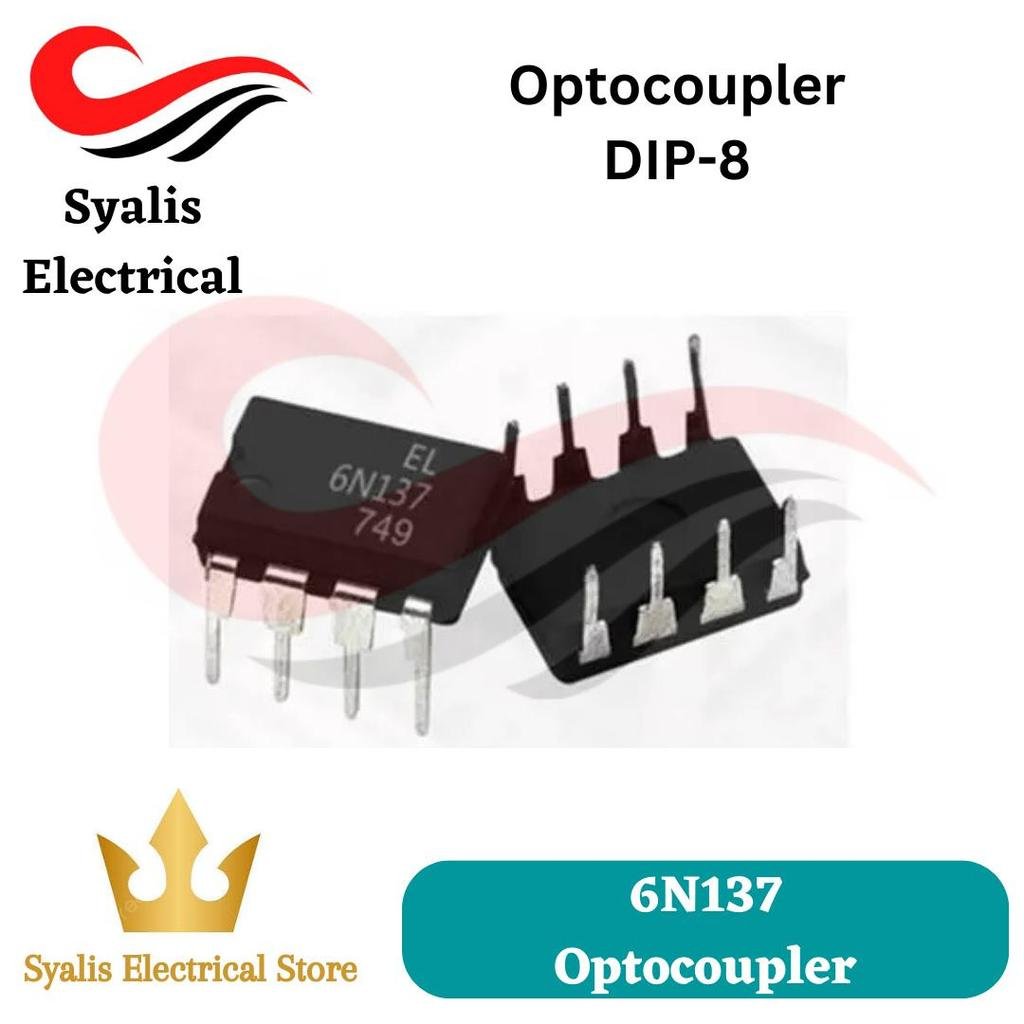

6N137 6N 137 High speed logic gate optocoupler BH88

DESCRIPTION:
The 6N137, HCPL-2601/2611 single-channel and HCPL-2630/2631 dual-channel optocouplers consist of a 850 nm AlGaAS LED, optically coupled to a very high speed integrated photodetector logic gate with a strobable output. This output features an open Collector, thereby permitting wired OR outputs. The coupled parameters are guaranteed over the temperature range of -40C to +85C. A maximum input signal of 5 mA will provide a minimum output sink current of 13 mA (fan out of 8).

FEATURE:
Very high speed-10 MBit/s
Superior CMR-10 kV/s
Double working voltage-480V
Fan-out of 8 over -40C to +85C
Logic gate output
Strobable output
Wired OR-open collector
U.L. recognized (File # E90700)

Application:
Ground loop elimination
LSTTL to TTL, LSTTL or 5-volt CMOS
Line receiver, data transmission
Data multiplexing
Switching power supplies
Pulse transformer replacement
Computer-peripheral interface
